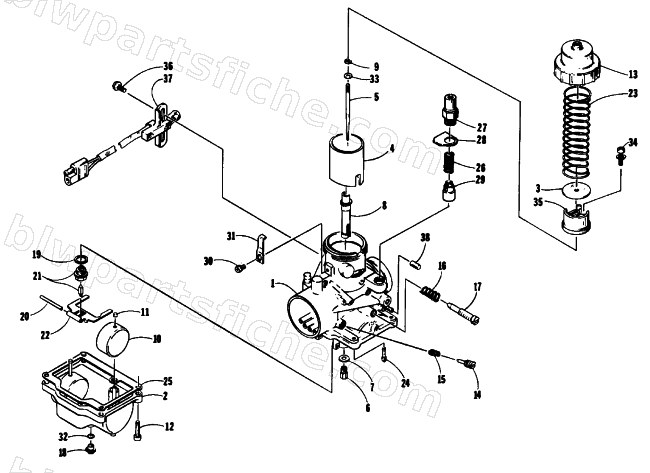

CARBURETOR
1993 CHEETAH
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0770-085 | CARB,VM34-W/CARB SWITCH | 1 | $440.95 | |
| 2 | 6505-632 | FLOAT CHAMBER BODY ASSY | 1 | $86.95 | |
| 3 | 6505-630 | PLATE (VM34/468-1A) | 1 | $10.97 | |
| 4 | 6505-561 | PISTON VALVE 3.0 | 1 | $109.95 | |
| 5 | 6505-215 | JET NEEDLE 6DH7 | 1 | $22.01 | |
| 6 | 6505-068 | JET MAIN 250 | 1 | $6.75 | |
| 7 | 6505-620 | RING | 1 | $24.77 | |
| 8 | 6505-540 | NEEDLE JET P4 (480) | 1 | $31.95 | |
| 9 | 6505-610 | E-RING | 1 | $2.19 | |
| 10 | 6505-009 | FLOAT | 1 | $29.95 | |
| 11 | 6505-010 | CAP | 1 | $1.64 | |
| 12 | 6505-014 | SCREW,CROSS W/WASHER | 1 | $1.64 | |
| 13 | 6505-558 | CAP.TOP | 1 | $68.95 | |
| 14 | 6505-019 | SCREW,AIR | 1 | $12.35 | |
| 15 | 6505-020 | SPRING,SCREW AIR | 1 | $3.44 | |
| 16 | 6505-021 | SPRING | 1 | $3.44 | |
| 17 | 6505-022 | SCREW THROTTLE STOP | 1 | $13.73 | |
| 18 | 6505-617 | PLUG,DRAIN-FLOAT CHAMBER | 1 | $38.95 | |
| 19 | 6505-024 | WASHER,SEAT VALVE | 1 | $1.37 | |
| 20 | 6505-153 | PIN,FLOAT ARM | 1 | $3.16 | |
| 21 | 6505-160 | VALVE,NEEDLE | 1 | $50.95 | |
| 22 | 6505-027 | ARM, FLOAT | 1 | $13.73 | |
| 23 | 6506-394 | GASKET,FUEL PUMP-DF44-201/40 | 1 | $13.73 | |
| 24 | 6505-029 | PILOT JET 35 | 1 | $6.75 | |
| 25 | 6505-030 | GASKET | 1 | $13.73 | |
| 26 | 6505-033 | SPRING,STARTER PLUNGER | 1 | $17.87 | |
| 27 | 6505-188 | CAP,STARTER PLUNGER | 1 | $16.49 | |
| 28 | 6505-187 | WASHER | 1 | $2.47 | |
| 29 | 6505-035 | PLUNGER,STARTER | 1 | $17.87 | |
| 30 | 6505-036 | SCREW (W/SPRING WASHER) | 1 | $1.37 | |
| 31 | 6505-186 | PLATE | 1 | $4.95 | |
| 32 | 6505-622 | O-RING | 1 | $4.95 | |
| 33 | 6505-437 | WASHER E-RING NYLON | 1 | $1.78 | |
| 34 | 6505-559 | SCREW W/WASHER M5-1.0 X 12 | 1 | $1.50 | |
| 35 | 0770-037 | BLOCK,MAGNET-ASSY | 1 | $62.95 | |
| 36 | 0623-137 | SCREW,TAPTITE-HWH 6-32X.313 Z&Y | 1 | $0.32 | |
| 37 | 0630-008 | SWITCH,MAGNETIC CARB ASSY | 1 | $63.95 | |
| 38 | 6505-569 | CAP | 1 | $15.11 |
