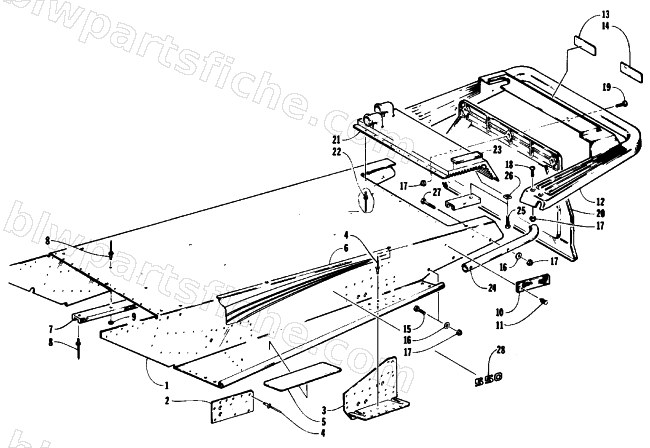

TUNNEL AND REAR BUMPER
1993 EXT 550
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-201 | TUNNEL ASSY W/MTG BRKTS | 1 | $1,039.95 | |
| 2 | 2706-277 | PLATE,BODY REINF-PTD BLK | 1 | $27.95 | |
| 3 | 2706-608 | BRACKET,SUSP.RH-PTD BLK | 1 | $92.95 | |
| 3 | 2706-609 | BRACKET,SUSP.LH-PTD BLK | 1 | $92.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 6 | 1611-456 | DECAL,TUNNEL-R.H. | 1 | $29.95 | |
| 6 | 1611-457 | DECAL,TUNNEL-L.H. | 1 | $52.95 | |
| 7 | 0706-739 | WEARSTRIP,TUNNEL | 1 | $33.95 | |
| 8 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 9 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 10 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 0716-223 | BUMPER W/STEEL INSERT | 1 | $181.95 | |
| 13 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8007-615 | SCREW,MACH-CRTH 1/4-20X1.50 G2 BE | 1 | $1.95 | |
| 19 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 20 | 0616-612 | SNOWFLAP,30 DEG.FLIP UP WHITE | 1 | $54.95 | |
| 21 | 0706-564 | HEAT EXCHANGER, REAR-WELDMT | 1 | $226.95 | |
| 22 | 0123-784 | RIVET3/16X1/4 SSPQ-64 | 1 | $1.19 | |
| 24 | 2706-600 | INSERT,BUMPER-PTD BLK | 1 | $64.95 | |
| 25 | 8009-577 | SCREW,MACH-CRPH 1/4-20X.50 G2 Z&Y | 1 | $0.15 | |
| 26 | 0623-076 | NUT,SQUARE 1/4-20 | 1 | $22.01 | |
| 27 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 28 | 1611-482 | DECAL, 550 | 1 | $6.95 |
