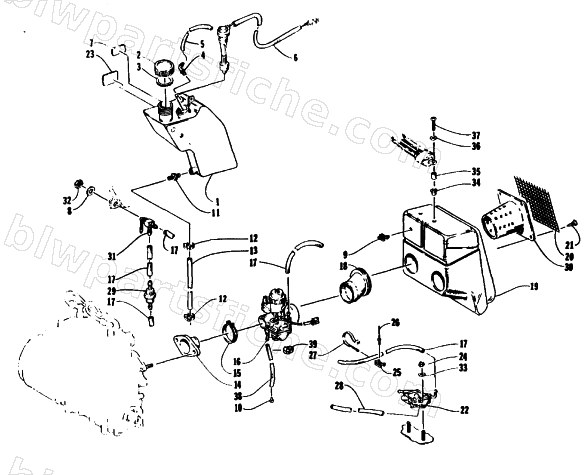

1993 Arctic Cat EXT 580 MOUNTAIN CAT — OIL TANK, CARBURETOR, FUEL PUMP, AND SILENCER
1993 EXT 580 MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0636-276 | PUMP KIT,FUEL-ROUND | 1 | $62.95 | |
| 1 | 0670-239 | TANK,OIL | 1 | $83.95 | |
| 2 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 3 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 4 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 5 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 6 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 7 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 8 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 9 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 10 | 0670-228 | PLUG,CARB DRAIN | 1 | $3.30 | |
| 11 | 0670-117 | OUTLET,OILTANK-5/16 TUBE | 1 | $3.95 | |
| 12 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 13 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 14 | 0670-197 | FLANGE,CARB-38MM W/CLAMP | 1 | $66.95 | |
| 15 | 0670-199 | CLAMP,CARB FLANGE-VM38 W/SPACER | 1 | $27.95 | |
| 16 | 0770-084 | CARB,VM38-256W/CARB SWITCH | 1 | $703.95 | |
| 17 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 17 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 18 | 1670-388 | BOOT, AIR SILENCER | 1 | $37.95 | |
| 19 | 0770-114 | SILENCER,AIR-W/RIV NUTS | 1 | $116.95 | |
| 20 | 0670-155 | SCREEN,AIR INTAKE | 1 | $44.95 | |
| 21 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 23 | 0611-978 | DECAL,FUEL SHUT-OFF VALVE | 1 | $10.95 | |
| 24 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 25 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 26 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 28 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 29 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 30 | 0670-151 | FUNNEL,AIR SILENCER | 1 | $29.95 | |
| 31 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 32 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 33 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 34 | 0623-084 | RIVET NUT,FLAT HEAD 10-32UNF X .130-.180 | 1 | $0.95 | |
| 35 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 36 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 38 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 39 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 |
