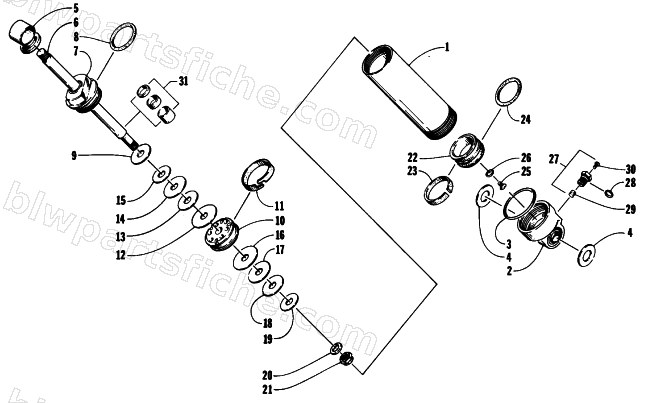

1993 Arctic Cat EXT 580 Z — FRONT SUSPENSION SHOCK ABSORBER
1993 EXT 580 Z
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0603-453 | SHOCK ABSORBER-FRONT SUSPENSION | 1 | $440.95 | |
| 1 | 1704-346 | SHOCK BODY/END CAP ASSY | 1 | $232.95 | |
| 2 | 1604-578 | ENDCAP, SHOCK - ASSY (FOX) | 1 | $157.95 | |
| 3 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 4 | 0604-633 | WASHER | 1 | $0.68 | |
| 5 | 0603-442 | EYELET, SHOCK | 1 | $147.95 | |
| 7 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 8 | 0603-294 | O RING-CAP ASSY. | 1 | $6.95 | |
| 9 | 0603-387 | WASHER (FOX-TOP OUT PLATE) | 1 | $2.95 | |
| 10 | 0603-512 | PISTON, .098 ORFICE | 1 | $97.95 | |
| 11 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 12 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 13 | 0603-339 | VALVE,1.000X.006(3/8ID) | 1 | $6.89 | |
| 14 | 0603-342 | VALVE,1.100X.006(3/8ID) | 1 | $6.95 | |
| 15 | 0603-336 | VALVE, .900X.006(3/8ID) | 1 | $15.11 | |
| 16 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 17 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 18 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 19 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 20 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 21 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 22 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 23 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 24 | 0603-447 | O-RING, .139 CS X 1.171 ID (FOX) | 1 | $4.95 | |
| 25 | 0604-629 | SCREW,RELIEF | 1 | $1.95 | |
| 26 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 27 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 28 | 0603-445 | O-RING-VALVE | 1 | $3.95 | |
| 30 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 31 | 0603-280 | SPACER,SHOCK .125 | 1 | $10.97 | |
| 31 | 0603-281 | SPACER,SHOCK .500 | 1 | $32.95 | |
| 31 | 0603-282 | SPACER,SHOCK 1.000 | 1 | $43.95 |
