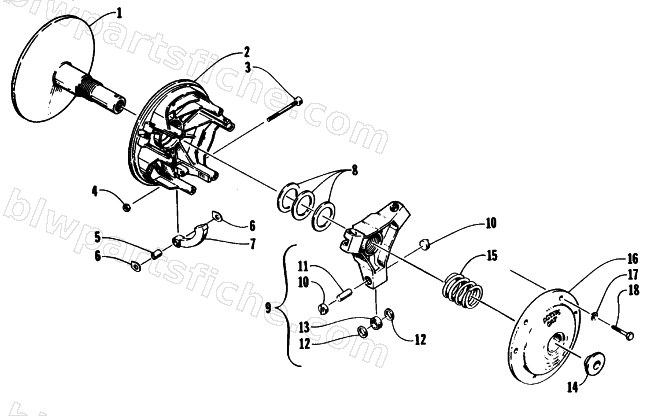

DRIVE CLUTCH
1993 JAG AFS LT 1 SPEED
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0746-043 | CLUTCH,DRIVE-UNCALIBRATED-ASSY(108 COMET | 1 | $909.95 | |
| 0 | 0136-229 | KIT,ROLLER | 1 | $187.95 | |
| 1 | 0646-152 | SHEAVE,STATIONARY-COMET (LONG BOLT) | 1 | $264.95 | |
| 2 | 0646-122 | SHEAVE, MOVABLE W/BEARING | 1 | $280.95 | |
| 5 | 0646-160 | BEARING,CAM ARM | 1 | $15.11 | |
| 6 | 0646-101 | WASHER,STEEL-CLUTCH | 1 | $0.95 | |
| 7 | 0746-540 | ARM,CAM-W/BRG-46.5 GRAM | 1 | $14.95 | |
| 7 | 0146-530 | CAM ARM | 1 | $69.95 | |
| 8 | 0646-088 | WASHER,SPACER COMET CLUTCH | 1 | $2.47 | |
| 10 | 0146-457 | BUTTON, WEAR | 1 | $14.95 | |
| 11 | 0146-454 | PIN | 1 | $6.95 | |
| 13 | 0146-456 | ROLLER W/BRNG | 1 | $66.95 | |
| 14 | 0646-111 | WASHER,PILOT-COMET CLUTCH | 1 | $31.95 | |
| 16 | 0646-146 | PLATE,COVER W/BEARING-COMET | 1 | $148.95 | |
| 17 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 18 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 74628 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 |
