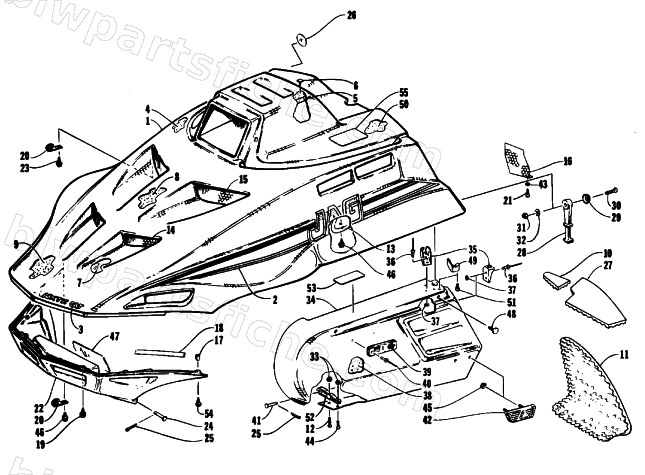

HOOD AND SIDE PODS
1993 JAG DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-227 | HOOD W/O DECALS | 1 | $1,599.95 | |
| 1 | 0718-390 | HOOD W/ DECALS | 1 | $1,695.95 | |
| 1 | 0718-245 | HOOD W/O DECALS | 1 | $1,056.95 | |
| 1 | 0718-248 | HOOD W/ DECALS | 1 | $1,130.95 | |
| 2 | 1611-403 | DECAL,HOOD LH | 1 | $56.95 | |
| 2 | 1611-402 | DECAL,HOOD RH | 1 | $52.95 | |
| 2 | 1611-405 | DECAL,HOOD LH | 1 | $56.95 | |
| 2 | 1611-404 | DECAL,HOOD RH | 1 | $56.95 | |
| 3 | 0611-622 | DECAL,ARCTIC CAT-WHITE | 1 | $20.63 | |
| 4 | 0617-122 | FOAM,HOOD-RH SIDE | 1 | $14.95 | |
| 5 | 0717-012 | FOAM,HOOD-HEADLIGHT POD | 1 | $15.95 | |
| 6 | 0623-143 | CLIP,CHRISTMAS TREE | 1 | $4.95 | |
| 7 | 0117-835 | TAPE ALUM REFLECTORIZED 6X6 SQ(0619-727) | 1 | $8.89 | |
| 8 | 0717-030 | FOAM,HOOD-CENTER (VENTS) | 1 | $17.95 | |
| 9 | 0717-025 | FOAM,HOOD CENTER LOWER | 1 | $23.29 | |
| 10 | 0617-134 | FOAM,DUCT-AIR OUT (SIDE) | 1 | $3.95 | |
| 11 | 0717-031 | FOAM,DUCT-AIR OUT (BOTTOM) | 1 | $8.95 | |
| 12 | 8007-402 | SCREW,MACH-CRTH 10-24X1.0 G2 Z&Y | 1 | $1.37 | |
| 14 | 0616-068 | SCREEN,VENT-HOOD-LOWER RH | 1 | $10.97 | |
| 14 | 0616-069 | SCREEN,VENT-HOOD-LOWER LH | 1 | $10.97 | |
| 15 | 0616-070 | SCREEN,VENT-HOOD-UPPER RH | 1 | $19.25 | |
| 15 | 0616-071 | SCREEN,VENT-HOOD-UPPER LH | 1 | $17.87 | |
| 16 | 0706-848 | SCREEN,VENT-HOOD-REAR RH | 1 | $15.95 | |
| 16 | 0706-849 | SCREEN,VENT-HOOD-REAR LH | 1 | $13.29 | |
| 17 | 0606-985 | BUSHING,ALIGNMENT-HOOD/NOSEPIECE | 1 | $18.95 | |
| 18 | 0606-954 | PROTECTOR,TRIM-HOOD/NOSEPIECE | 1 | $11.95 | |
| 19 | 0623-332 | SCREW,S.T.HI-LO,HEX WH HD #8 X 1.12 BLK | 1 | $0.25 | |
| 20 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 21 | 0623-311 | SCREW,SELF TAP-HWH #8X3/8 TYPE A | 1 | $0.65 | |
| 23 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 24 | 0302-016 | PIN,TIGHTENER | 1 | $5.95 | |
| 27 | 0617-135 | FOAM,HOOD-AIR OUT | 1 | $13.95 | |
| 28 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 29 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 | |
| 30 | 8009-614 | SCREW,MACH-CRPH 1/4-20X1.25 G2 Z&BLK | 1 | $0.25 | |
| 31 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 32 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 33 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 34 | 0718-197 | POD,LH W/FOAM | 1 | $378.95 | |
| 34 | 0718-196 | POD,RH W/FOAM | 1 | $521.95 | |
| 35 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 36 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 37 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 38 | 0717-078 | FOAM,HOOD-CONVOLUTED 27 X 3'X.75 | 1 | $24.77 | |
| 39 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 41 | 0623-230 | PIN,CLEVIS 1/4 X 1 7/8 | 1 | $3.95 | |
| 42 | 0606-704 | BUMPER,POD | 1 | $14.95 | |
| 43 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 44 | 8007-400 | SCREW,MACH-CRTH 10-24X.75 G2 Z&Y | 1 | $0.40 | |
| 45 | 0123-709 | NUT,HEX 10-32 W/LOCKWASHER | 1 | $0.40 | |
| 46 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 47 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 48 | 0623-259 | CLIP,CHRISTMAS TREE-1/4 | 1 | $1.95 | |
| 49 | 0606-801 | GUIDE,POD-LH | 1 | $2.95 | |
| 50 | 0617-111 | FOAM,HOOD CENTER-UPPER | 1 | $14.95 | |
| 51 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 52 | 0606-955 | HINGE,SIDE POD | 1 | $3.95 | |
| 53 | 1611-581 | DECAL,CAUTION-JETTING/STORAGE | 1 | $21.95 | |
| 54 | 0623-357 | SCREW,ST-HWH #8 X 1.25 AB BLK ZINC | 1 | $0.15 | |
| 55 | 1611-407 | DECAL,WARNING-HOOD | 1 | $19.95 |
