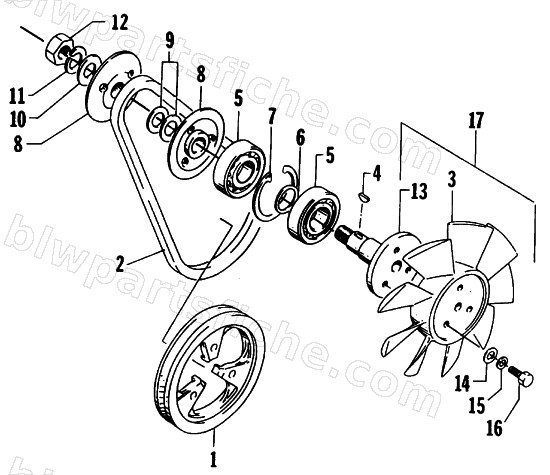

COOLING FAN
1993 JAG
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-702 | PULLEY,COOLING FAN DRIVE | 1 | $46.95 | |
| 2 | 3002-854 | BELT,COOLING FAN | 1 | $53.95 | |
| 3 | 3003-008 | FAN, COOLING | 1 | $91.95 | |
| 4 | 3000-266 | KEY(FASTENER) | 1 | $3.30 | |
| 5 | 3002-750 | BEARING,BALL,M20X42X12 | 1 | $41.95 | |
| 6 | 3002-179 | SPACER,M20.2X30X2,WASHER | 1 | $4.95 | |
| 7 | 3004-479 | CIRCLIP,FASTENER | 1 | $3.95 | |
| 8 | 3002-782 | PULLEY DRIVEN | 1 | $30.95 | |
| 9 | 3002-728 | SHIM 16X25X.5 SPG STL(WASHER) | 1 | $3.71 | |
| 10 | 3005-956 | WASHER, COOL FAN-10 MM | 1 | $2.95 | |
| 11 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 12 | 3008-209 | NUT,10MM | 1 | $3.16 | |
| 13 | 3003-009 | 003FT, COOLING FAN | 1 | $220.95 | |
| 14 | 3003-030 | WASHER, FLAT | 1 | $2.75 | |
| 15 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 16 | 3007-392 | BOLT | 1 | $3.95 | |
| 17 | 3003-285 | FAN ASSY,COOLING | 1 | $563.95 |
