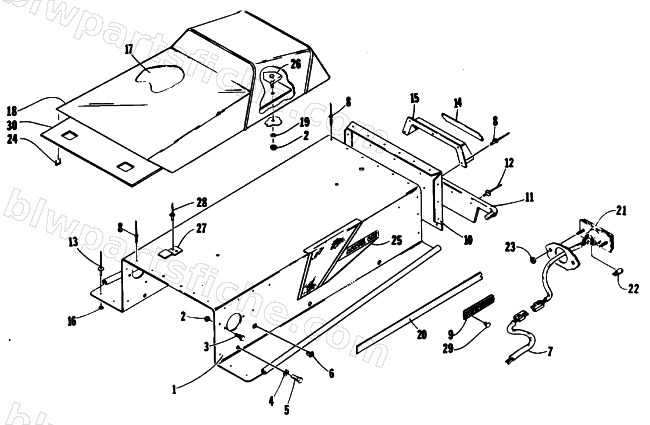

SEAT, TUNNEL, AND TAILIGHT
1993 KITTY CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0616-462 | BODY-FORMED | 1 | $814.95 | |
| 2 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 3 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 5 | 8002-220 | SCREW,CAP-HH 3/8-16 X.75 G5 Z&Y | 1 | $0.95 | |
| 6 | 0123-534 | NUT,EXPANSION 8-18 | 1 | $0.40 | |
| 7 | 0686-160 | HARNESS,TAILLIGHT | 1 | $26.95 | |
| 8 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 9 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 12 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 13 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 14 | 1611-433 | DECAL,HANDLE-REAR | 1 | $54.95 | |
| 15 | 0300-173 | HANDLE REAR | 1 | $27.95 | |
| 16 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 17 | 0302-131 | PAD,FOAM | 1 | $102.95 | |
| 18 | 0716-909 | COVER,SEAT | 1 | $209.95 | |
| 19 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 20 | 0611-967 | DECAL,REFLECTIVE TAPE (25') | 1 | $160.95 | |
| 21 | 0609-070 | TAILLIGHT,KITTY CAT | 1 | $54.95 | |
| 22 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 23 | 8040-276 | NUT,HEX LOCK-NYL 10-32 Z&Y | 1 | $0.15 | |
| 25 | 1611-428 | DECAL,TUNNEL-RH | 1 | $29.95 | |
| 25 | 1611-429 | DECAL,TUNNEL-LH | 1 | $29.95 | |
| 26 | 0106-869 | PLATE WELD REINFORCE SEAT | 1 | $32.95 | |
| 28 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 29 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 |
