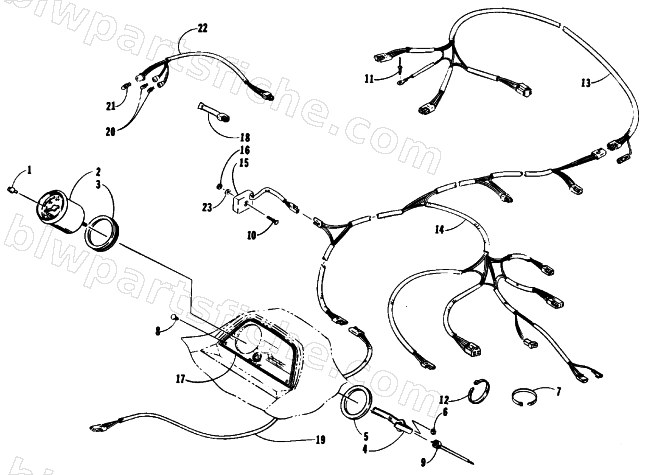

1993 Arctic Cat LYNX — INSTRUMENTS AND WIRING ASSEMBLIES
1993 LYNX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 7 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 8 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 10 | 0623-096 | BOLT,RIB NECK-RDH 1/4-20X1.50 Z&Y | 1 | $0.55 | |
| 11 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 14 | 0686-055 | HARNESS,MAIN WIRING | 1 | $233.95 | |
| 15 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 20 | 0609-078 | BULB,T 6.5 WEDGE BASE-1 | 1 | $4.95 | |
| 23 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 |
