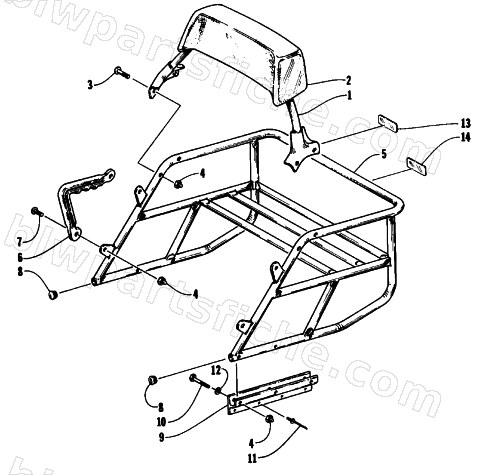

RACK AND BACKREST ASSEMBLY
1993 PANTHER
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0706-661 | BACKREST W/COVER | 1 | $309.95 | |
| 2 | 0706-298 | COVER,BACKREST | 1 | $106.95 | |
| 3 | 8007-584 | SCREW,MACH-CRTH 1/4-20X1.25 G2 Z&Y | 1 | $2.19 | |
| 5 | 0706-676 | RACK-PTD BLK | 1 | $229.95 | |
| 6 | 0606-750 | HANDGRIP,BACKREST | 1 | $36.95 | |
| 7 | 8007-581 | SCREW, MACH-THCR 1/4-20X.87 G2 Z&Y | 1 | $0.65 | |
| 8 | 0606-487 | CLOSURE,TUBE-3/4 X 14 GA. | 1 | $13.73 | |
| 9 | 2706-318 | BRKT,MTG-RACK-PTD BLK | 1 | $43.95 | |
| 10 | 0623-032 | SCREW, CAP -1/4-20X1 5/8 | 1 | $0.95 | |
| 11 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 12 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 13 | 1611-568 | DECAL,WARNING-MAX PAYLOAD WT | 1 | $13.73 | |
| 14 | 1611-569 | DECAL,WARNING-MAX PAYLOAD WT(FRENCH) | 1 | $13.73 |
