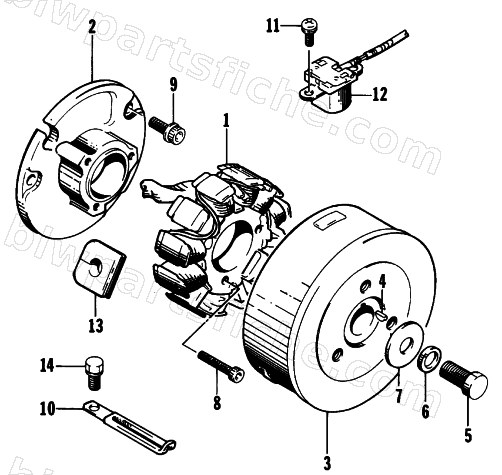

1993 Arctic Cat THUNDERCAT — MAGNETO
1993 THUNDERCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-251 | STATOR | 1 | $1,004.95 | |
| 2 | 3005-252 | BASE, STATOR | 1 | $134.95 | |
| 3 | 3005-227 | FLYWHEEL | 1 | $1,100.95 | |
| 4 | 3010-070 | KEY,TYPE 3 M3(FASTENER) | 1 | $3.99 | |
| 5 | 3004-215 | BOLT, 10X20 | 1 | $1.95 | |
| 6 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 7 | 3008-016 | WASHER, 10.5X30X3.2 | 1 | $3.85 | |
| 8 | 3007-685 | BOLT,5X30 | 1 | $3.44 | |
| 9 | 3004-217 | BOLT, 6X20 | 1 | $2.95 | |
| 10 | 3006-580 | CLAMP,BREATHER HOSE | 1 | $4.95 | |
| 11 | 3003-912 | SCREW,CLAMP-M5X12 | 1 | $1.69 | |
| 12 | 3004-073 | SENSOR, IGN TIMING | 1 | $238.95 | |
| 14 | 3004-218 | BOLT, GROUND 6X12 | 1 | $1.95 |
