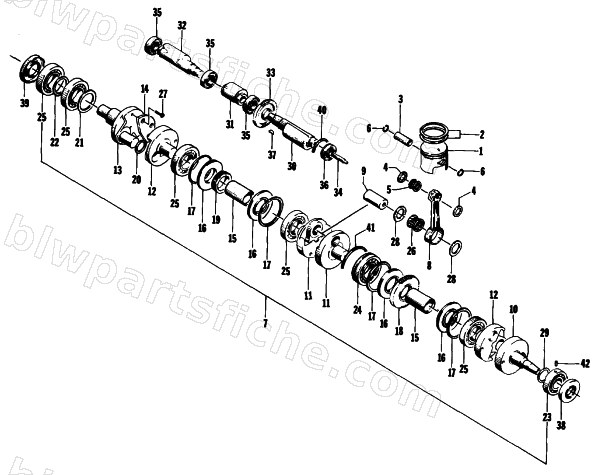

1993 Arctic Cat THUNDERCAT — PISTON AND CRANKSHAFT
1993 THUNDERCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-086 | PISTON ASS'Y, 900L/C W/RINGS | 1 | $291.95 | |
| 2 | 3004-079 | RING SET,900 L/C | 1 | $110.95 | |
| 3 | 3003-767 | PIN,PISTON | 1 | $38.95 | |
| 4 | 3005-209 | WASHER,20MM | 1 | $13.73 | |
| 5 | 3003-433 | BEARING,PISTON PIN,ROLLER,M20X26X24 | 1 | $42.95 | |
| 6 | 3003-439 | CIRCLIP,PISTON PIN,M20 | 1 | $3.16 | |
| 7 | 3004-121 | CRANKSHAFT ASSY, 900 L/C | 1 | $5,105.95 | |
| 8 | 3004-888 | ROD,CONNECTING | 1 | $220.95 | |
| 9 | 3004-700 | PIN,CRANK | 1 | $85.95 | |
| 10 | 3005-645 | CRANKSHAFT,RH | 1 | $560.95 | |
| 11 | 3004-161 | CRANKSHAFT, MIDDLE #1 | 1 | $516.95 | |
| 12 | 3005-647 | CRANKSHAFT,MIDDLE NO 2 | 1 | $470.95 | |
| 13 | 3004-890 | CRANKSHAFT-LH | 1 | $555.95 | |
| 14 | 3004-165 | BALANCER,CRANKSHAFT | 1 | $30.95 | |
| 15 | 3005-312 | PIPE, CRANKSHAFT JOINT | 1 | $342.95 | |
| 16 | 3004-167 | RACE, MIDDLE CRANK SEAL | 1 | $102.95 | |
| 18 | 3005-314 | GEAR,BALANCER SHAFT DRIVE | 1 | $224.95 | |
| 19 | 3004-178 | GEAR, DRIVE-OIL PUMP | 1 | $324.95 | |
| 20 | 3004-147 | WASHER, M30X42X3 | 1 | $17.87 | |
| 21 | 3004-204 | WASHER, CRANK BEARING,52MM | 1 | $16.95 | |
| 22 | 3004-148 | SHIM, M45X58 0.5 | 1 | $6.47 | |
| 24 | 3004-151 | BEARING,BALL,M45X90X19 | 1 | $233.95 | |
| 25 | 3004-152 | BEARING,BALL,M45X90X19 | 1 | $193.95 | |
| 26 | 3004-984 | BEARING/WASHER SET | 1 | $174.95 | |
| 27 | 3003-395 | SCREW,6X20 C/S | 1 | $3.44 | |
| 28 | 3004-205 | WASHER, CRANKPIN #1,30MM | 1 | $3.95 | |
| 29 | 3008-501 | WASHER,35MM | 1 | $3.85 | |
| 31 | 3005-313 | SHAFT ASSY, BALANCER | 1 | $1,388.95 | |
| 33 | 3005-552 | GEAR, BALANCER SHAFT DRIVEN | 1 | $251.95 | |
| 34 | 3005-316 | SHAFT, WATER PUMP | 1 | $66.95 | |
| 35 | 3004-209 | BEARING, BALANCER SHAFT-LH,BALL,M25X52X1 | 1 | $42.95 | |
| 36 | 3004-208 | BEARING, BALANCER SHAFT-RH(BALL)(25X52X1 | 1 | $43.95 | |
| 37 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 38 | 3004-084 | SEAL,CRANKSHAFT-RH,M30 | 1 | $89.95 | |
| 40 | 3004-156 | C-RING,M52 | 1 | $3.85 | |
| 41 | 3004-157 | C-RING, 87.6X96X2 | 1 | $22.01 | |
| 42 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 |
