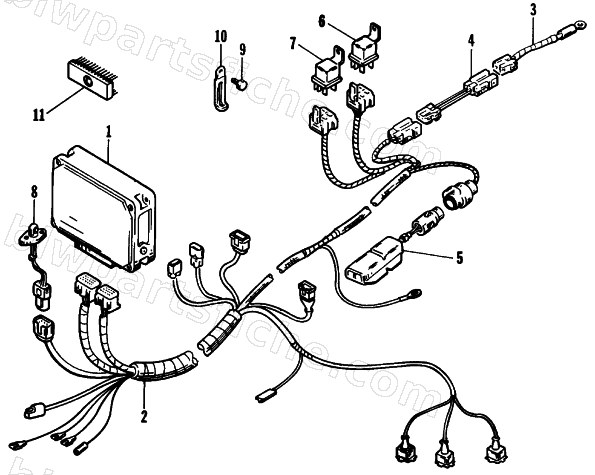

1993 Arctic Cat WILDCAT MOUNTAIN CAT EFI — ECU AND ECU HARNESS ASSEMBLIES
1993 WILDCAT MOUNTAIN CAT EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-027 | ECU-UPPER (RED) | 1 | $2,358.95 | |
| 1 | 3004-028 | ECU-CENTER (YELLOW) | 1 | $2,612.95 | |
| 1 | 3004-029 | ECU-LOWER (BLUE) | 1 | $2,830.95 | |
| 2 | 3004-142 | HARNESS, FUEL INJECTION | 1 | $1,008.95 | |
| 3 | 3003-946 | LEAD, BATT PLUS | 1 | $48.95 | |
| 7 | 3003-883 | RELAY ASSY,CONTROLLER | 1 | $148.95 | |
| 8 | 3004-018 | SENSOR, AIR TEMP. | 1 | $148.95 | |
| 9 | 3003-943 | BOLT, 4X8 | 1 | $19.25 | |
| 10 | 3003-944 | CLAMP,M4 | 1 | $1.95 | |
| 11 | 3004-291 | EPROM, RED-GAS | 1 | $435.95 | |
| 11 | 3004-292 | EPROM, YEL-GAS | 1 | $395.95 | |
| 11 | 3004-293 | EPROM, BLU-GAS | 1 | $345.95 | |
| 11 | 0637-047 | ETHANOL EPROM KIT-RED | 1 | $254.95 | |
| 11 | 0637-048 | ETHANOL EPROM KIT-YELLOW | 1 | $337.95 | |
| 11 | 0637-049 | ETHANOL EPROM KIT-BLUE | 1 | $337.95 |
