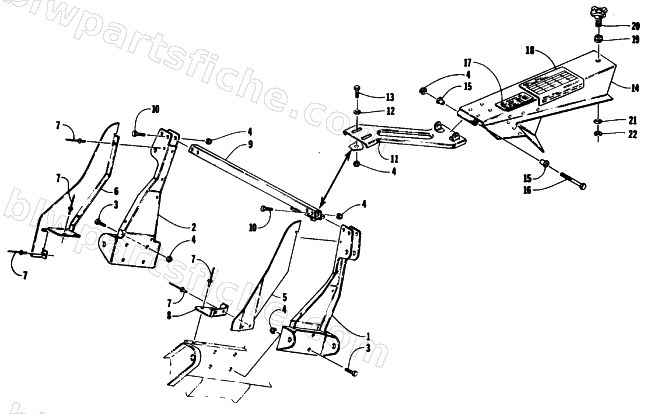

FRONT SUSPENSION BRACKETS & CLUTCH SHIELD
1993 WILDCAT MOUNTAIN CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-849 | SUPPORT,SHOCK-LH-PTD BLK | 1 | $269.95 | |
| 2 | 0707-848 | SUPPORT,SHOCK-RH-PTD BLK | 1 | $254.95 | |
| 3 | 8002-037 | SCREW,CAP-HH 1/4-20 X.50 G5 Z&Y | 1 | $0.25 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 0616-059 | FENDER,INNER-LH | 1 | $81.95 | |
| 7 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 9 | 0707-104 | CROSSBRACE,SHOCK SUPPORT-WELDMENT | 1 | $36.95 | |
| 10 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 11 | 0707-107 | BRACKET,MTG-CLUTCH SHIELD WELD'T | 1 | $32.95 | |
| 12 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 13 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 14 | 0707-103 | SHIELD,CLUTCH-ASSY | 1 | $157.95 | |
| 15 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 17 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 18 | 1611-468 | DECAL,JET CHART-93 WILDCAT | 1 | $6.95 | |
| 19 | 0607-097 | GROMMET,GUARD | 1 | $1.92 | |
| 20 | 0607-095 | KNOB,THREADED MALE STUD | 1 | $24.77 | |
| 21 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 22 | 0607-096 | RETAINER,KNOB-CLUTCH SHLD | 1 | $20.63 |
