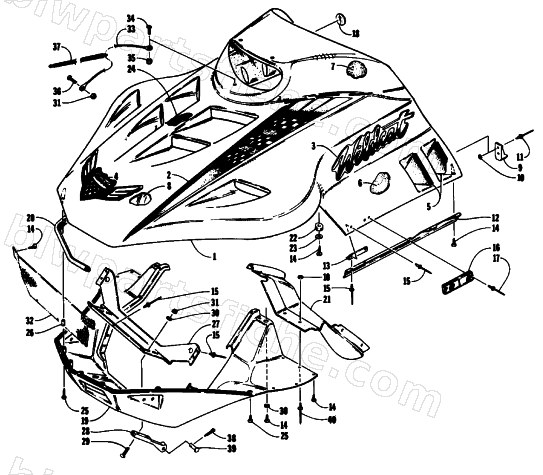

1993 Arctic Cat WILDCAT MOUNTAIN CAT — HOOD AND NOSEPIECE ASSEMBLY
1993 WILDCAT MOUNTAIN CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-241 | HOOD W/O DECALS | 1 | $1,652.95 | |
| 1 | 0718-240 | HOOD W/ DECALS | 1 | $1,886.95 | |
| 2 | 1611-496 | DECAL,HOOD SIDE RH | 1 | $104.95 | |
| 2 | 1611-497 | DECAL,HOOD SIDE LH | 1 | $97.95 | |
| 3 | 1611-500 | DECAL,WILDCAT | 1 | $133.95 | |
| 5 | 1611-210 | DECAL,HOOD-BOTTOM,RH | 1 | $155.95 | |
| 5 | 1611-211 | DECAL,HOOD-BOTTOM,LH | 1 | $51.95 | |
| 6 | 0717-010 | FOAM,HOOD-RH | 1 | $20.95 | |
| 6 | 0717-009 | FOAM,HOOD-LH | 1 | $20.95 | |
| 7 | 0717-044 | FOAM,HOOD-UPPER-RH | 1 | $10.95 | |
| 7 | 0717-045 | FOAM,HOOD-UPPER-LH | 1 | $8.95 | |
| 8 | 0616-240 | FOIL,HOOD-FRONT-RH | 1 | $29.95 | |
| 8 | 0616-209 | FOIL,HOOD-FRONT LH | 1 | $20.95 | |
| 12 | 0616-096 | CHANNEL,HOOD-RH | 1 | $13.95 | |
| 12 | 0616-097 | CHANNEL,HOOD-LH | 1 | $12.35 | |
| 13 | 0616-095 | BRACKET,CHANNEL-HOOD | 1 | $2.61 | |
| 14 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 15 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 16 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 21 | 0616-272 | FENDER,RH | 1 | $170.95 | |
| 21 | 0616-273 | FENDER,LH | 1 | $170.95 | |
| 22 | 0606-513 | BUMPER,FOOTREST/HOOD | 1 | $3.95 | |
| 23 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 24 | 0717-032 | FOAM,HOOD-UPPER CENTER | 1 | $10.95 | |
| 25 | 0623-358 | SCREW,SELF TAP-PHPNH #10X1.25 AB BLK2 | 1 | $0.15 | |
| 26 | 0606-985 | BUSHING,ALIGNMENT-HOOD/NOSEPIECE | 1 | $18.95 | |
| 27 | 0616-101 | BRACE,NOSEPIECE | 1 | $63.95 | |
| 28 | 0616-034 | HINGE,HOOD | 1 | $223.95 | |
| 29 | 0623-347 | SCREW,MACH FH CR 10-24 X 1.00 Z&Y | 1 | $0.26 | |
| 30 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 31 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 32 | 0616-055 | SCREEN,NOSECONE | 1 | $40.95 | |
| 35 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 36 | 8007-400 | SCREW,MACH-CRTH 10-24X.75 G2 Z&Y | 1 | $0.40 | |
| 37 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 39 | 0302-016 | PIN,TIGHTENER | 1 | $5.95 | |
| 40 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 |
