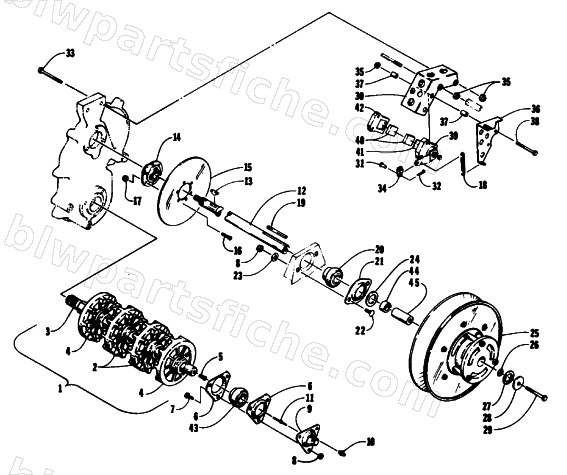

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
1993 WILDCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-027 | TRACK DRIVE ASSY - MACH (4 SPOKE) | 1 | $324.95 | |
| 2 | 0702-327 | SPROCKET,DRIVE-9T (INSIDE)-MACH. | 1 | $59.95 | |
| 3 | 0602-487 | SHAFT,DRIVE-HEX | 1 | $412.95 | |
| 4 | 0702-328 | SPROCKET,DRIVE-9T (OUTSIDE)-MACH. | 1 | $57.95 | |
| 5 | 0120-247 | BUSHING,DRIVE-SPEEDOMETER | 1 | $5.65 | |
| 6 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 7 | 8011-132 | BOLT,CRG 5/16-18X1.0 GR1 Z&Y | 1 | $1.78 | |
| 8 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 9 | 0720-004 | ADAPTER,DRIVE-SPEEDO-FAB | 1 | $117.95 | |
| 10 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 11 | 0602-154 | CABLE,DRIVE ADAPTOR | 1 | $12.35 | |
| 12 | 0702-468 | SHAFT,DRIVEN-PTD BLK | 1 | $180.95 | |
| 13 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 14 | 0602-434 | HUB,BRAKE | 1 | $183.95 | |
| 15 | 0602-436 | DISC,BRAKE | 1 | $167.95 | |
| 16 | 0623-185 | SCREW,SOCKET HD 10-32X5/8 BLACK | 1 | $13.95 | |
| 17 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 18 | 0115-602 | SPRING,BRAKE ARM RETURN | 1 | $47.95 | |
| 19 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 20 | 1602-290 | BEARING,1 W/LOCK(LARGE RACE) | 1 | $81.95 | |
| 21 | 0602-233 | FLANGE,BRG-TWO MTG HOLE | 1 | $4.26 | |
| 22 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 23 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 24 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 24 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 25 | 0726-018 | CLUTCH,DRIVEN | 1 | $701.95 | |
| 26 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 27 | 0123-578 | WASHER,FLAT 1IDX1.5X.030 THK | 1 | $3.95 | |
| 29 | 8002-142 | SCREW,CAP-HH 5/16-18 X3.25 G5 Z&Y | 1 | $0.65 | |
| 30 | 0707-216 | BRACKET,BRAKE-WELDMENT | 1 | $51.95 | |
| 31 | 0423-109 | PIN,CP26 | 1 | $0.45 | |
| 33 | 8002-235 | SCREW,CAP-HH 3/8-16 X4.50 G5 Z&Y | 1 | $1.95 | |
| 34 | 0117-867 | CLEVIS | 1 | $37.95 | |
| 35 | 0124-060 | NUT,CROWNLOCK 3/8-16 UNC Z&Y | 1 | $0.85 | |
| 36 | 0602-492 | BRACKET,MOUNTING-BRAKE | 1 | $11.95 | |
| 37 | 0115-585 | SPACER,BRAKE CALIPER | 1 | $16.95 | |
| 38 | 0124-079 | HHCS,3/8-16X3 1/2 GR5 | 1 | $26.95 | |
| 40 | 0115-603 | PUCK,BRAKE | 1 | $21.95 | |
| 42 | 0115-584 | CALIPER,STATIONARY CASTING | 1 | $62.95 | |
| 43 | 1602-375 | BEARING,1.00 W/COLLAR | 1 | $72.95 | |
| 44 | 0648-003 | SPACER,DRIVEN CLCH | 1 | $42.95 |
