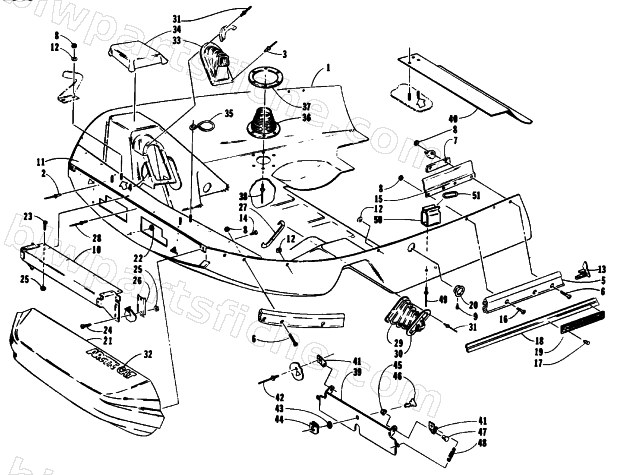

1994 Arctic Cat CHEETAH 340 — BELLY PAN AND NOSE CONE ASSEMBLIES
1994 CHEETAH 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0606-798 | BELLYPAN,BLACK | 1 | $754.95 | |
| 2 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 3 | 8060-711 | RIVET,BLIND-DH SS610 BLK | 1 | $1.50 | |
| 4 | 0603-053 | RING, SUSPENS BT | 1 | $23.39 | |
| 5 | 0706-029 | BUMPER,LH FRONT | 1 | $116.95 | |
| 5 | 0706-026 | BUMPER, RH FRONT | 1 | $167.95 | |
| 6 | 0123-982 | SCREW,MACH FH 1/4-20X1-3/4 | 1 | $0.25 | |
| 7 | 0606-011 | SPACER, FOOTREST | 1 | $6.95 | |
| 8 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 9 | 0623-016 | SCREW,SELF TAP #10-24X1 | 1 | $0.45 | |
| 10 | 0706-056 | BUMPER,FRONT-ASSY | 1 | $180.95 | |
| 11 | 0706-189 | SUPPORT,HINGE-BELLYPAN | 1 | $126.95 | |
| 12 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 16 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 17 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 18 | 0611-780 | DECAL,FRONT BUMPER RH | 1 | $32.95 | |
| 18 | 0611-781 | DECAL,FRONT BUMPER LH | 1 | $32.95 | |
| 19 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 22 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 25 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 26 | 0606-044 | PLATE, BACKING | 1 | $3.95 | |
| 27 | 0605-091 | RING,REINFORCEMENT-STRG BOOT | 1 | $24.77 | |
| 28 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 | |
| 30 | 0605-092 | RING,STEERING BOOT | 1 | $21.95 | |
| 31 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 32 | 1611-754 | DECAL,ARCTIC CAT-WHITE | 1 | $19.95 | |
| 34 | 0716-358 | FOIL,6" X 18" (0619-727) | 1 | $14.95 | |
| 36 | 0612-255 | PLATE,EXHAUST SEAL MOUNTING | 1 | $5.95 | |
| 37 | 0612-254 | SEAL,EXHAUST OUTLET | 1 | $41.95 | |
| 38 | 8061-510 | RIVET,BLIND-LF SS58 BLACK | 1 | $0.81 | |
| 39 | 0606-581 | DOOR,VENT-FRONT | 1 | $17.95 | |
| 40 | 0606-280 | BRACKET,HINGE-RH FRONT | 1 | $14.95 | |
| 40 | 0606-281 | BRACKET,HINGE-LH FRONT | 1 | $14.95 | |
| 43 | 0623-100 | SPRING,DOOR-BELLY PAN VENT | 1 | $3.95 | |
| 44 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 45 | 0124-057 | E-RING | 1 | $1.64 | |
| 46 | 0623-201 | STUD,1/4 TURN | 1 | $6.95 | |
| 47 | 0623-203 | RECEPTACLE,CLIP ON-1/4 TURN | 1 | $12.35 | |
| 48 | 0606-914 | O-RING,DRIVE BELT HOLDER | 1 | $2.47 | |
| 49 | 0636-659 | KIT, DRIVE BELT HOLDER | 1 | $13.73 | |
| 50 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 |
