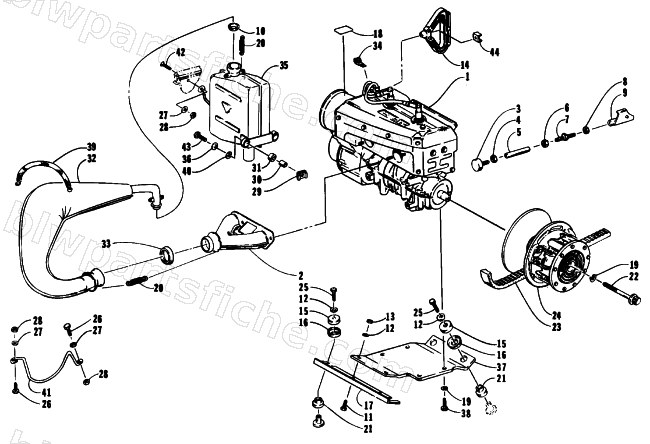

1994 Arctic Cat CHEETAH 340 — ENGINE AND RELATED PARTS
1994 CHEETAH 340
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-106 | ENGINE,(340 F/C-AG34A4) W/PRIMER | 1 | $1,635.95 | |
| 2 | 0712-095 | MANIFOLD,EXHAUST-WELDT | 1 | $113.95 | |
| 3 | 0608-008 | BUMPER,TORQUE {1.176"} 90 DURO -ENGINE | 1 | $14.95 | |
| 4 | 8042-426 | NUT,5/16-18 HEX-REG-GR5 Z&Y | 1 | $0.54 | |
| 5 | 0608-011 | TUBE,TORQUE ADJUST {2.48"} | 1 | $47.95 | |
| 6 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 7 | 0105-305 | STUD BOLT,TIE ROD ADJ | 1 | $23.39 | |
| 8 | 0123-379 | NUT,JAM3/8-24LH THD | 1 | $1.95 | |
| 9 | 0708-001 | BRKT,TORQUE-WELD'T | 1 | $20.95 | |
| 10 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 11 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 12 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 13 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 14 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 15 | 0108-199 | MOUNT,ENGINE-FEMALE | 1 | $12.35 | |
| 16 | 0123-745 | WASHER,CUP | 1 | $22.01 | |
| 17 | 0608-003 | ANGLE, SUPPORT | 1 | $150.95 | |
| 18 | 1611-676 | DECAL,ENGINE P/N 0662-106 | 1 | $6.95 | |
| 19 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 20 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 21 | 0108-198 | MOUNT,ENGINE-MALE | 1 | $5.95 | |
| 22 | 0623-206 | BOLT,COUNTERBORE-1/2-20X5.5 | 1 | $20.63 | |
| 23 | 0227-103 | BELT,DRIVE | 1 | $71.95 | |
| 24 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 25 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 26 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 27 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 28 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 29 | 0623-157 | RETAINER NUT,1/4-20 | 1 | $3.85 | |
| 31 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 32 | 0712-098 | CHAMBER,EXPANSION | 1 | $254.95 | |
| 33 | 0612-131 | GASKET,EXHAUST-HEADER JOINT | 1 | $29.95 | |
| 34 | 3013-432 | CLAMP WIRING HARNESS,M8 | 1 | $3.95 | |
| 35 | 0712-045 | RESONATOR,EXHAUST-WELDT | 1 | $308.95 | |
| 36 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 37 | 0608-049 | PLATE,MTG-ENGINE | 1 | $191.95 | |
| 38 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 39 | 0623-473 | SPRING,EXTENSION | 1 | $15.11 | |
| 40 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
