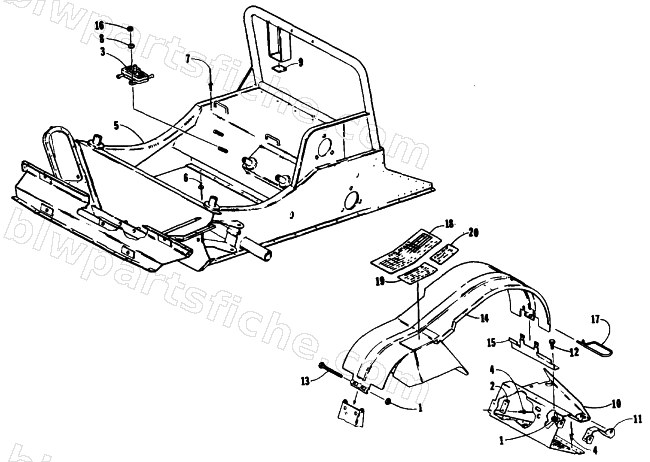

FRONT FRAME AND FOOTREST ASSEMBLY
1994 CHEETAH 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 3 | 0115-481 | FUEL PUMP (DF44-227) | 1 | $78.95 | |
| 4 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 5 | 0707-111 | FRONT END WELDMENT | 1 | $1,298.95 | |
| 6 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 7 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 8 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 10 | 0706-243 | FOOTREST-REINFORCE LH | 1 | $117.95 | |
| 10 | 0706-204 | FOOTREST,REINFORCED-R.H. | 1 | $107.95 | |
| 12 | 8002-037 | SCREW,CAP-HH 1/4-20 X.50 G5 Z&Y | 1 | $0.25 | |
| 13 | 8002-052 | SCREW,CAP-HH 1/4-20 X3.25 G5 Z&Y | 1 | $0.95 | |
| 14 | 0707-028 | SHIELD,CLUTCH-WELD | 1 | $219.95 | |
| 16 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 17 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 18 | 1611-675 | DECAL,JET CHART | 1 | $6.95 | |
| 19 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 20 | 1611-582 | DECAL,CAUTION-JETTING/STORAGE | 1 | $13.73 |
