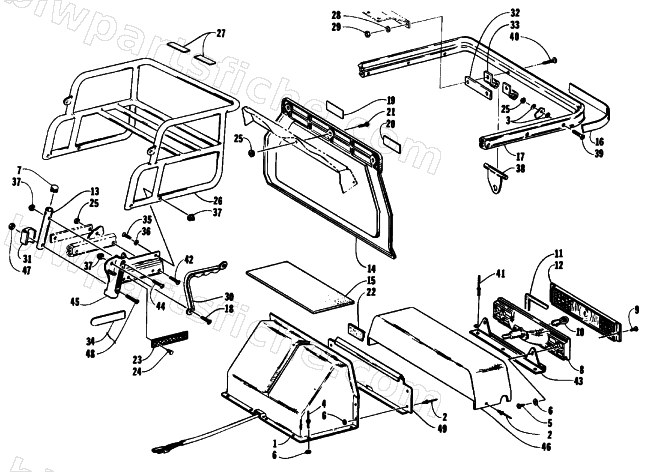

1994 Arctic Cat CHEETAH 340 — TOOLBOX, TAILLIGHT AND REAR BUMPER
1994 CHEETAH 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0606-504 | SHROUD,TOOLBOX | 1 | $106.95 | |
| 2 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 3 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 4 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 5 | 0623-280 | SCREW,SELF TAP-HWH #8X5/8 TYPE A | 1 | $0.68 | |
| 6 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 7 | 0606-487 | CLOSURE,TUBE-3/4 X 14 GA. | 1 | $13.73 | |
| 8 | 0709-026 | HOUSING,TAILLIGHT-ASSY | 1 | $84.95 | |
| 9 | 0124-080 | SCREW,PAN HD-7X5/8 CR | 1 | $0.95 | |
| 10 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 11 | 0117-042 | GASKET,TAILLIGHT | 1 | $17.95 | |
| 13 | 0606-627 | TUBE,SPACER-BACKREST BRKT | 1 | $29.95 | |
| 14 | 0606-744 | SNOWFLAP-30 DG PLASTIC-PLA | 1 | $45.95 | |
| 17 | 0706-458 | BUMPER,REAR | 1 | $102.95 | |
| 18 | 8007-581 | SCREW, MACH-THCR 1/4-20X.87 G2 Z&Y | 1 | $0.65 | |
| 19 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 20 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 23 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 24 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 25 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 26 | 0706-662 | RACK,SAFARI | 1 | $302.95 | |
| 27 | 1611-568 | DECAL,WARNING-MAX PAYLOAD WT | 1 | $13.73 | |
| 27 | 1611-569 | DECAL,WARNING-MAX PAYLOAD WT(FRENCH) | 1 | $13.73 | |
| 28 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 30 | 0606-750 | HANDGRIP,BACKREST | 1 | $36.95 | |
| 31 | 0706-460 | SPACER,BACKREST TUBE | 1 | $7.95 | |
| 33 | 0114-432 | HITCH,BRACKET | 1 | $38.95 | |
| 35 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 36 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 38 | 0120-320 | HITCH WELDMENT-{ZINC} HITCH KITS | 1 | $37.95 | |
| 39 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 40 | 0623-133 | SCREW,MACHINE-FLAT HEAD 5/16-18X1 3/8 | 1 | $1.95 | |
| 41 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 42 | 0623-268 | SCREW,FLAT HEAD-1/4-20 X 1.50 | 1 | $0.35 | |
| 44 | 0623-179 | SCREW,MACH-OV HD-1/4-20X1 1/2 | 1 | $0.40 | |
| 45 | 0706-448 | BRKT,BACKREST-RH-DRILLED | 1 | $100.95 | |
| 45 | 0706-449 | BRKT,BACKREST-LH-DRILLED | 1 | $100.95 | |
| 47 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 48 | 0623-339 | SCREW,MACH-OV HD-1/4-20X2.00-BLK | 1 | $0.45 |
