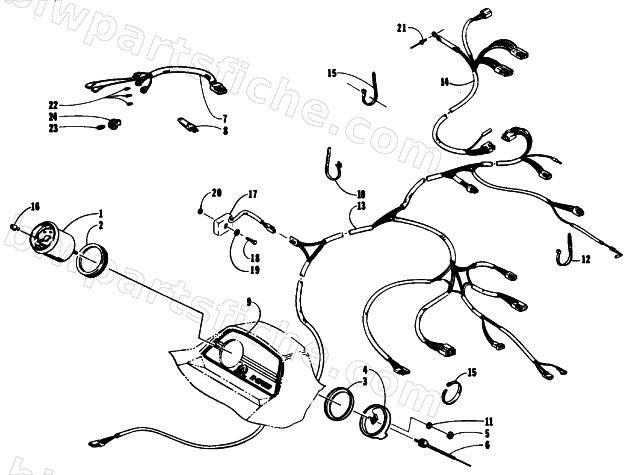

1994 Arctic Cat CHEETAH 550 — INSTRUMENTS AND WIRING ASSEMBLIES
1994 CHEETAH 550
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0620-116 | SPEEDOMETER,US-NEW BEZEL | 1 | $312.95 | |
| 2 | 0620-096 | RING,CUSHION-RUBBER | 1 | $17.87 | |
| 3 | 0120-361 | PLATE,RETAINING | 1 | $5.95 | |
| 4 | 0620-098 | BACKCLAMP,TACH/SPEEDO-3.56 | 1 | $3.71 | |
| 5 | 0123-709 | NUT,HEX 10-32 W/LOCKWASHER | 1 | $0.40 | |
| 6 | 0620-030 | CABLE,SPEEDOMETER | 1 | $60.95 | |
| 7 | 0620-091 | HARNESS,SPEEDO-BEAM,TEMP&OIL REF0620-062 | 1 | $90.95 | |
| 8 | 0609-069 | POSISTOR,WIRING | 1 | $23.39 | |
| 9 | 1611-805 | DECAL,CONSOLE-HOOD | 1 | $37.95 | |
| 10 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 11 | 8050-152 | WASHER,FLAT- #10 X .469 X .049 Z&Y | 1 | $3.16 | |
| 12 | 0623-285 | CABLE TIE,DOUBLE LOOP | 1 | $3.85 | |
| 13 | 0686-080 | HARNESS,MAIN WIRING | 1 | $269.95 | |
| 14 | 0686-218 | HARNESS,HOOD-HEADLIGHT | 1 | $66.95 | |
| 15 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 16 | 0620-073 | KNOB,TRIPMETER | 1 | $15.11 | |
| 17 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 18 | 0623-096 | BOLT,RIB NECK-RDH 1/4-20X1.50 Z&Y | 1 | $0.55 | |
| 19 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 22 | 0620-104 | BULB,TACH/SPEEDO-1.5WT-1 1/4 | 1 | $4.68 | |
| 23 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 24 | 0620-279 | BULB,TACH SPEEDO ASSY | 1 | $5.95 |
