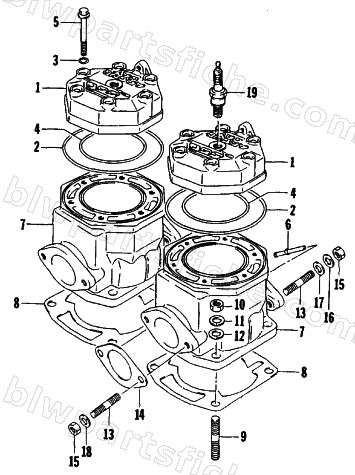

1994 Arctic Cat EXT 580 MOUNTAIN CAT WAVE — CYLINDER AND HEAD ASSEMBLY
1994 EXT 580 MOUNTAIN CAT WAVE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-064 | HEAD, CYL. 580 L/C | 1 | $348.95 | |
| 2 | 3003-765 | O RING,HEAD-OUTER | 1 | $22.01 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3003-764 | O RING,HEAD-INNER | 1 | $30.95 | |
| 5 | 3007-408 | BOLT | 1 | $4.26 | |
| 6 | 3003-597 | NOZZLE,INJECTION | 1 | $13.73 | |
| 7 | 3004-065 | CYLINDER, 580 L/C | 1 | $1,152.95 | |
| 8 | 3003-763 | GASKET,CYL BASE 550-580L/C | 1 | $29.95 | |
| 9 | 3005-207 | STUD BOLT,10MM | 1 | $12.35 | |
| 10 | 3007-692 | NUT,10MM | 1 | $3.16 | |
| 11 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 12 | 3004-363 | R/B 3004-278 | 1 | $0.89 | |
| 13 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 14 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 15 | 3007-416 | NUT | 1 | $2.75 | |
| 16 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 17 | 3423-204 | WASHER | 1 | $1.95 | |
| 19 | 0217-700 | SPARK PLUG BR9ES {SOLID} | 1 | $4.54 |
