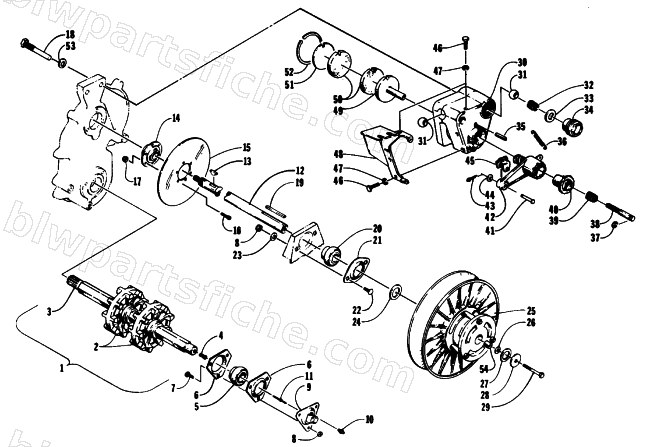

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
1994 EXT 580 MOUNTAIN CAT WAVE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-028 | TRACK DRIVE ASSY | 1 | $329.95 | |
| 2 | 0702-327 | SPROCKET,DRIVE-9T (INSIDE)-MACH. | 1 | $59.95 | |
| 3 | 0602-487 | SHAFT,DRIVE-HEX | 1 | $412.95 | |
| 4 | 0120-247 | BUSHING,DRIVE-SPEEDOMETER | 1 | $5.65 | |
| 5 | 1602-375 | BEARING,1.00 W/COLLAR | 1 | $72.95 | |
| 6 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 7 | 8011-132 | BOLT,CRG 5/16-18X1.0 GR1 Z&Y | 1 | $1.78 | |
| 8 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 9 | 0720-005 | ADAPTER,DRIVE-SPEEDOMETER-FAB. 47 | 1 | $96.95 | |
| 10 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 11 | 0602-154 | CABLE,DRIVE ADAPTOR | 1 | $12.35 | |
| 12 | 0702-468 | SHAFT,DRIVEN-PTD BLK | 1 | $180.95 | |
| 13 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 14 | 0602-434 | HUB,BRAKE | 1 | $183.95 | |
| 15 | 0602-551 | DISC,BRAKE | 1 | $125.95 | |
| 16 | 0623-459 | SCREW,SOCKET HD 10-32X3/4 | 1 | $1.95 | |
| 17 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 18 | 0602-386 | BOLT,MTNG.-BRAKE CALIPER | 1 | $16.95 | |
| 19 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 20 | 1602-290 | BEARING,1 W/LOCK(LARGE RACE) | 1 | $81.95 | |
| 21 | 0602-233 | FLANGE,BRG-TWO MTG HOLE | 1 | $4.26 | |
| 22 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 23 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 24 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 24 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 25 | 0726-077 | CLUTCH,DRIVEN - ASSY | 1 | $602.95 | |
| 26 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 27 | 0123-578 | WASHER,FLAT 1IDX1.5X.030 THK | 1 | $3.95 | |
| 29 | 8002-138 | SCREW,CAP-HH 5/16-18 X2.25 G5 Z&Y | 1 | $0.95 | |
| 30 | 0602-505 | CALIPER,BRAKE-MACHINED | 1 | $152.95 | |
| 31 | 0602-503 | BALL,ALIGNMENT-BRAKE CALIPER | 1 | $36.95 | |
| 32 | 0602-616 | SPRING,COMPRESSION-BRAKE | 1 | $9.59 | |
| 33 | 0623-450 | WASHER, FLAT .380X.938 | 1 | $0.75 | |
| 34 | 0602-622 | NUT,BRAKE CALIPER | 1 | $5.95 | |
| 35 | 8070-316 | PIN,SPRING-3/16 X 1-1/4 SLOTTED P&O | 1 | $1.92 | |
| 36 | 0602-651 | SPRING,RETURN-ACTUATOR ARM | 1 | $5.65 | |
| 37 | 0124-057 | E-RING | 1 | $1.64 | |
| 38 | 0602-515 | SCREW,BRAKE ADJUSTMENT | 1 | $13.73 | |
| 39 | 0602-618 | SPRING,COMPRESSION | 1 | $71.95 | |
| 40 | 0602-514 | KNOB,BRAKE ADJUSTMENT | 1 | $6.20 | |
| 41 | 0602-509 | PIN,CLEVIS-BRAKE | 1 | $3.30 | |
| 42 | 0702-414 | ARM, ACTIVATOR-MACH | 1 | $74.95 | |
| 44 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 45 | 0602-508 | CLEVIS,BRAKE CABLE | 1 | $20.63 | |
| 46 | 8002-037 | SCREW,CAP-HH 1/4-20 X.50 G5 Z&Y | 1 | $0.25 | |
| 47 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 48 | 0702-201 | BRKT,BRAKE CABLE-WELDED | 1 | $29.95 | |
| 49 | 0602-716 | PISTON,BRAKE PAD | 1 | $34.95 | |
| 50 | 0702-264 | PAD SET,BRAKE | 1 | $69.95 | |
| 52 | 0602-502 | SNAP RING-1.88 | 1 | $1.39 | |
| 53 | 8050-307 | WASHER,FLAT- 7/16 X .922 X .065 Z&Y | 1 | $0.15 |
