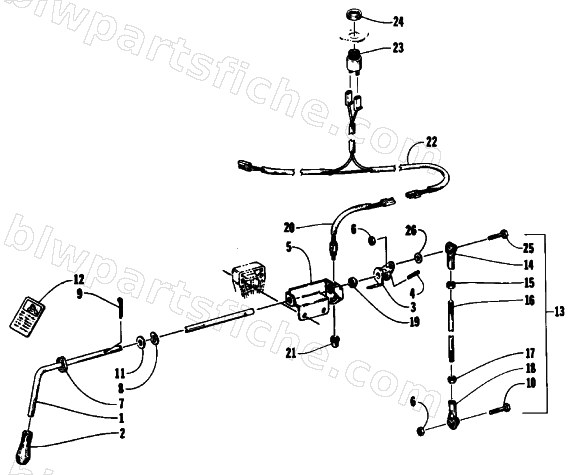

1994 Arctic Cat EXT 580 MOUNTAIN CAT WAVE — REVERSE SHIFT LEVER ASSEMBLY
1994 EXT 580 MOUNTAIN CAT WAVE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0602-298 | LEVER,SHIFT | 1 | $61.95 | |
| 2 | 0602-152 | KNOB,SHIFT LEVER | 1 | $15.11 | |
| 3 | 0702-173 | ARM,SHIFT LEVER-WELDMT | 1 | $62.95 | |
| 4 | 0623-542 | PIN,SPRING-3/16 X 7/8 COILED BLK | 1 | $1.92 | |
| 5 | 0702-270 | BRKT,MOUNTING-PIVOT-FAB | 1 | $116.95 | |
| 6 | 8043-422 | NUT,5/16-18 HEX LOCK-MET TOP LOC GRA Z&Y | 1 | $0.68 | |
| 7 | 0617-094 | SEAL,FOAM-SHIFT LEVER | 1 | $3.71 | |
| 8 | 0623-130 | WASHER,SPRING-3/8 | 1 | $1.50 | |
| 9 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 10 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 11 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 14 | 0602-322 | ROD END,5/16-24-RH | 1 | $29.95 | |
| 15 | 0123-144 | NUT,HEX-JAM 5/16-24 NF ZN | 1 | $0.26 | |
| 16 | 0602-464 | ROD,SHIFT | 1 | $28.95 | |
| 17 | 0623-260 | NUT,HEX JAM 5/16-24 NF L H | 1 | $1.09 | |
| 18 | 0602-305 | ROD END L.H. 5/16-24 UNF | 1 | $22.95 | |
| 19 | 0602-297 | BEARING,SPHERICAL-.375 DIA | 1 | $58.95 | |
| 20 | 0630-011 | SWITCH, ALARM | 1 | $60.95 | |
| 22 | 0686-121 | HARNESS,WIRING-ALARM | 1 | $58.95 | |
| 23 | 0630-010 | ALARM,REVERSE | 1 | $112.95 | |
| 24 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 25 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 26 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 |
