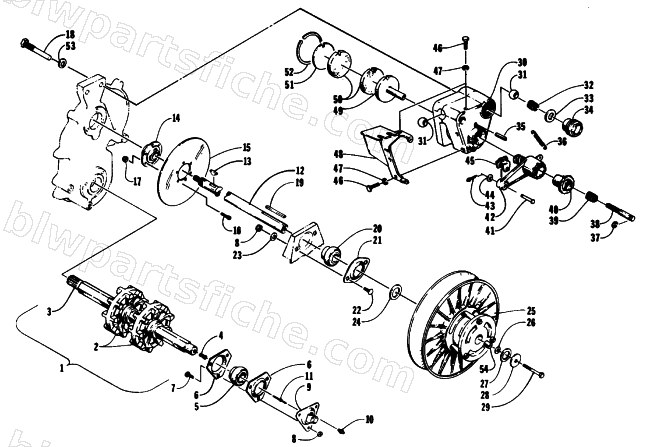

1994 Arctic Cat EXT EFI MOUNTAIN CAT WAVE — DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
1994 EXT EFI MOUNTAIN CAT WAVE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-028 | TRACK DRIVE ASSY | 1 | $329.95 | |
| 2 | 0702-327 | SPROCKET,DRIVE-9T (INSIDE)-MACH. | 1 | $59.95 | |
| 3 | 0602-487 | SHAFT,DRIVE-HEX | 1 | $412.95 | |
| 4 | 0120-247 | BUSHING,DRIVE-SPEEDOMETER | 1 | $5.65 | |
| 5 | 1602-375 | BEARING,1.00 W/COLLAR | 1 | $72.95 | |
| 6 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 7 | 8011-132 | BOLT,CRG 5/16-18X1.0 GR1 Z&Y | 1 | $1.78 | |
| 8 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 9 | 0720-005 | ADAPTER,DRIVE-SPEEDOMETER-FAB. 47 | 1 | $96.95 | |
| 10 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 11 | 0602-154 | CABLE,DRIVE ADAPTOR | 1 | $12.35 | |
| 12 | 0702-468 | SHAFT,DRIVEN-PTD BLK | 1 | $180.95 | |
| 13 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 14 | 0602-434 | HUB,BRAKE | 1 | $183.95 | |
| 15 | 0602-551 | DISC,BRAKE | 1 | $125.95 | |
| 16 | 0623-459 | SCREW,SOCKET HD 10-32X3/4 | 1 | $1.95 | |
| 17 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 18 | 0602-386 | BOLT,MTNG.-BRAKE CALIPER | 1 | $16.95 | |
| 19 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 20 | 1602-290 | BEARING,1 W/LOCK(LARGE RACE) | 1 | $81.95 | |
| 21 | 0602-233 | FLANGE,BRG-TWO MTG HOLE | 1 | $4.26 | |
| 22 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 23 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 24 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 24 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 25 | 0726-077 | CLUTCH,DRIVEN - ASSY | 1 | $602.95 | |
| 26 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 27 | 0123-578 | WASHER,FLAT 1IDX1.5X.030 THK | 1 | $3.95 | |
| 29 | 8002-138 | SCREW,CAP-HH 5/16-18 X2.25 G5 Z&Y | 1 | $0.95 | |
| 30 | 0602-505 | CALIPER,BRAKE-MACHINED | 1 | $152.95 | |
| 31 | 0602-503 | BALL,ALIGNMENT-BRAKE CALIPER | 1 | $36.95 | |
| 32 | 0602-616 | SPRING,COMPRESSION-BRAKE | 1 | $9.59 | |
| 33 | 0623-450 | WASHER, FLAT .380X.938 | 1 | $0.75 | |
| 34 | 0602-622 | NUT,BRAKE CALIPER | 1 | $5.95 | |
| 35 | 8070-316 | PIN,SPRING-3/16 X 1-1/4 SLOTTED P&O | 1 | $1.92 | |
| 36 | 0602-651 | SPRING,RETURN-ACTUATOR ARM | 1 | $5.65 | |
| 37 | 0124-057 | E-RING | 1 | $1.64 | |
| 38 | 0602-515 | SCREW,BRAKE ADJUSTMENT | 1 | $13.73 | |
| 39 | 0602-618 | SPRING,COMPRESSION | 1 | $71.95 | |
| 40 | 0602-514 | KNOB,BRAKE ADJUSTMENT | 1 | $6.20 | |
| 41 | 0602-509 | PIN,CLEVIS-BRAKE | 1 | $3.30 | |
| 42 | 0702-414 | ARM, ACTIVATOR-MACH | 1 | $74.95 | |
| 44 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 45 | 0602-508 | CLEVIS,BRAKE CABLE | 1 | $20.63 | |
| 46 | 8002-037 | SCREW,CAP-HH 1/4-20 X.50 G5 Z&Y | 1 | $0.25 | |
| 47 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 48 | 0702-201 | BRKT,BRAKE CABLE-WELDED | 1 | $29.95 | |
| 49 | 0602-716 | PISTON,BRAKE PAD | 1 | $34.95 | |
| 50 | 0702-264 | PAD SET,BRAKE | 1 | $69.95 | |
| 52 | 0602-502 | SNAP RING-1.88 | 1 | $1.39 | |
| 53 | 8050-307 | WASHER,FLAT- 7/16 X .922 X .065 Z&Y | 1 | $0.15 | |
| 54 | 0648-018 | SHAFT,STUB-DRIVEN (1.30") | 1 | $16.49 |
