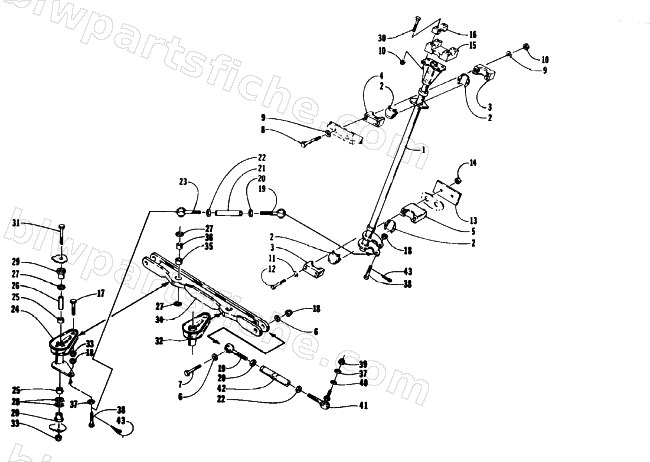

TIE ROD/STEERING POST ASSEMBLY
1994 EXT EFI MOUNTAIN CAT WAVE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0705-997 | POST,STEERING-PTD BLK | 1 | $116.95 | |
| 2 | 0605-149 | BEARING,STEERING POST | 1 | $3.02 | |
| 3 | 0605-171 | CAP, BEARING - STEERING POST | 1 | $19.95 | |
| 4 | 0705-064 | HSNG,BEARING-UPPER-PTD BLK | 1 | $19.25 | |
| 5 | 0605-407 | HOUSING,BEARING-LOWER(99PROD) | 1 | $79.95 | |
| 6 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 7 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 8 | 8002-052 | SCREW,CAP-HH 1/4-20 X3.25 G5 Z&Y | 1 | $0.95 | |
| 9 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 12 | 0623-224 | SCREW,CAP -HH 5/16-18 X 3.75 ZN | 1 | $0.95 | |
| 13 | 0605-217 | PLATE,BACKING-STEERING POST (L/C) | 1 | $12.35 | |
| 14 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 15 | 0105-351 | BLOCK,ADJUSTING-STEERING | 1 | $58.59 | |
| 16 | 0105-350 | CAP,STEERING ADJUSTER | 1 | $19.79 | |
| 17 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 18 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 19 | 0605-202 | ROD END-RH | 1 | $84.95 | |
| 20 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 22 | 0123-379 | NUT,JAM3/8-24LH THD | 1 | $1.95 | |
| 23 | 0605-203 | ROD END-LH | 1 | $72.95 | |
| 24 | 0705-096 | ARM,STEERING-FAB. | 1 | $78.95 | |
| 25 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 27 | 0605-065 | WASHER,SPACER-STRG | 1 | $4.68 | |
| 28 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 29 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 30 | 8002-047 | SCREW,CAP-HH 1/4-20 X2.00 G5 Z&Y | 1 | $0.95 | |
| 31 | 8002-233 | SCREW,CAP-HH 3/8-16 X3.50 G5 Z&Y | 1 | $1.78 | |
| 33 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 34 | 0705-090 | DRAG LINK W/BEARINGS | 1 | $255.95 | |
| 35 | 0605-107 | BEARING,GARLOCK 10DU08 | 1 | $2.61 | |
| 36 | 0605-066 | AXLE,DRAG-LINK | 1 | $6.83 | |
| 37 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 39 | 0623-025 | NUT,LOCK3/8-24 NF | 1 | $3.16 | |
| 40 | 0605-014 | O-RING,RUBBER | 1 | $0.26 | |
| 41 | 0605-073 | BALL JOINT,STEERING 3/8-24 LH | 1 | $79.95 | |
| 42 | 0605-216 | TUBE,TIE ROD-SPINDLE - 7.375" W/FLATS | 1 | $21.95 | |
| 43 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 |
