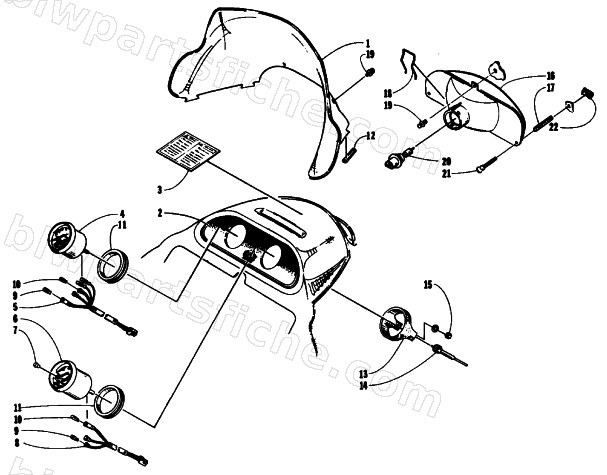

1994 Arctic Cat EXT EFI MOUNTAIN CAT WAVE — WINDSHIELD, HEADLIGHT, AND HOOD HINGE
1994 EXT EFI MOUNTAIN CAT WAVE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0616-361 | WINDSHIELD, FORMED | 1 | $110.95 | |
| 2 | 1611-828 | DECAL,INSTRUMENT-HOOD | 1 | $89.95 | |
| 3 | 1611-575 | DECAL,WARNING-HOOD | 1 | $25.95 | |
| 4 | 0620-155 | TACHOMETER,12 POLE REPLACEMENT | 1 | $323.95 | |
| 5 | 0620-063 | HARNESS,TACH-TEMP&WARMER | 1 | $56.95 | |
| 6 | 0620-116 | SPEEDOMETER,US-NEW BEZEL | 1 | $312.95 | |
| 7 | 0620-073 | KNOB,TRIPMETER | 1 | $15.11 | |
| 8 | 0620-064 | HARNESS,SPEEDO-BEAM&OIL | 1 | $58.95 | |
| 9 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 10 | 0609-078 | BULB,T 6.5 WEDGE BASE-1 | 1 | $4.95 | |
| 11 | 0620-083 | CUSHION,RUBBER-SPEEDOMETER/TACH | 1 | $13.73 | |
| 12 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 13 | 0620-098 | BACKCLAMP,TACH/SPEEDO-3.56 | 1 | $3.71 | |
| 14 | 0620-269 | CABLE, SPEEDOMETER-96" | 1 | $68.95 | |
| 15 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 16 | 0639-963 | KIT, HEADLIGHT REPLACEMENT | 1 | $229.95 | |
| 17 | 0623-466 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $5.78 | |
| 18 | 0609-164 | CLIP,RETAINING-HEADLIGHT BULB | 1 | $20.95 | |
| 19 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 20 | 0609-171 | BULB,HEADLIGHT HB5/9007 | 1 | $65.95 | |
| 21 | 0623-467 | SCREW,THUMB-1/4X20X3.5 | 1 | $15.11 | |
| 22 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 23 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 24 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 25 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 |
