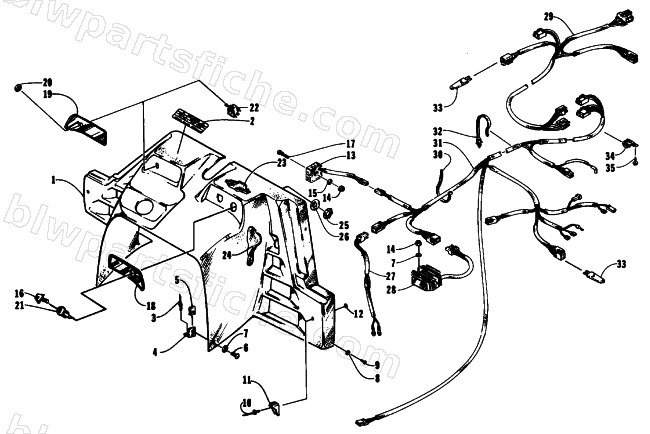

CONSOLE, SWITCHES, AND WIRING ASSEMBLIES
1994 EXT EFI MOUNTAIN CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0644-198 | WRENCH,NUT-SWITCH | 1 | $1.78 | |
| 1 | 0616-359 | CONSOLE | 1 | $464.95 | |
| 2 | 1611-408 | DECAL,WARNING-SEATING CAP. | 1 | $17.95 | |
| 3 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 5 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 7 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 8 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 9 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 11 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 12 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 13 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 16 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 17 | 0623-096 | BOLT,RIB NECK-RDH 1/4-20X1.50 Z&Y | 1 | $0.55 | |
| 18 | 1611-910 | PLATE,CONSOLE-SWITCHES | 1 | $34.95 | |
| 19 | 1611-913 | PLATE,CONSOLE-SWITCHES | 1 | $34.95 | |
| 20 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 21 | 0609-081 | SWITCH, IGN. (W/0 KEY) | 1 | $54.95 | |
| 22 | 0609-187 | SWITCH,TOGGLE-DPDT (THUMB/HAND WARMER) | 1 | $33.95 | |
| 23 | 0617-166 | FOAM,CONSOLE CENTER | 1 | $5.95 | |
| 24 | 0617-164 | FOAM,CONSOLE RH | 1 | $11.95 | |
| 24 | 0617-165 | FOAM,CONSOLE LH | 1 | $11.95 | |
| 25 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 26 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 27 | 0686-151 | HARNESS,BATTERY FUSE | 1 | $29.95 | |
| 28 | 3007-912 | REGULATOR,VOLTAGE-DC(15V) | 1 | $383.95 | |
| 29 | 0686-208 | HARNESS-HEADLIGHT | 1 | $154.95 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 31 | 0686-216 | HARNESS,MAIN WIRING | 1 | $288.95 | |
| 32 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 33 | 0609-069 | POSISTOR,WIRING | 1 | $23.39 | |
| 34 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 35 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 |
