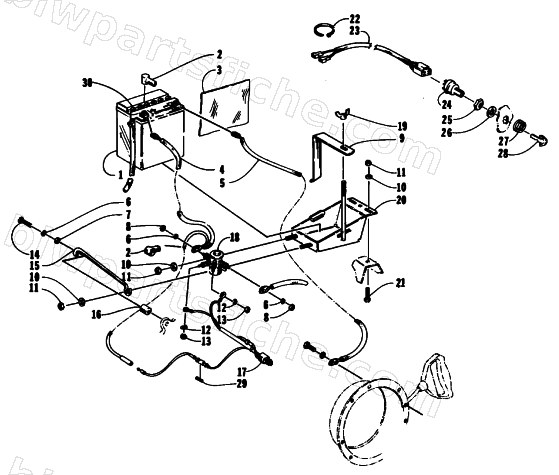

BATTERY, SOLENOID, AND CABLES
1994 JAG Z
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0638-327 | ELECTRIC START KIT | 1 | $733.95 | |
| 1 | 0745-045 | BATTERY PKG (0645-165) | 1 | $124.95 | |
| 2 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 3 | 0645-082 | WRAP,BATTERY HEAT-6 X 11 | 1 | $6.34 | |
| 4 | 0645-035 | CABLE,BATT-SOL 8.5 | 1 | $42.95 | |
| 5 | 0645-079 | CABLE,BATT-GRD 22 | 1 | $35.95 | |
| 6 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 7 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 8 | 8043-452 | NUT,5/16-24 HEX LOCK-MET TOP LOC GRA Z&Y | 1 | $0.95 | |
| 10 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 11 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 13 | 8042-272 | NUT,10-32 HEX-REG-GR2 Z&Y | 1 | $0.15 | |
| 14 | 8002-139 | SCREW,CAP-HH 5/16-18 X2.50 G5 Z&Y | 1 | $1.95 | |
| 15 | 0645-156 | BRACKET, SUPPORT-BATTERY TRAY | 1 | $15.11 | |
| 16 | 0645-158 | SPACER, BATT SUPPORT | 1 | $2.95 | |
| 17 | 0686-042 | HARNESS,ELECTRIC START | 1 | $68.95 | |
| 18 | 0645-078 | SOLENOID,ELECTRIC START(COMES W/ KIT 1) | 1 | $106.95 | |
| 19 | 0623-325 | NUT,WING - 1/4-20 NYLON SL | 1 | $2.06 | |
| 20 | 0745-041 | TRAY,BATTERY-WELDMENT | 1 | $71.95 | |
| 21 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 22 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 24 | 0609-082 | SWITCH,IGNITION | 1 | $54.95 | |
| 25 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 26 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 27 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 28 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 29 | 0630-014 | FUSE,10 AMP | 1 | $10.95 | |
| 30 | 0645-045 | BATTERY CAP | 1 | $1.92 |
