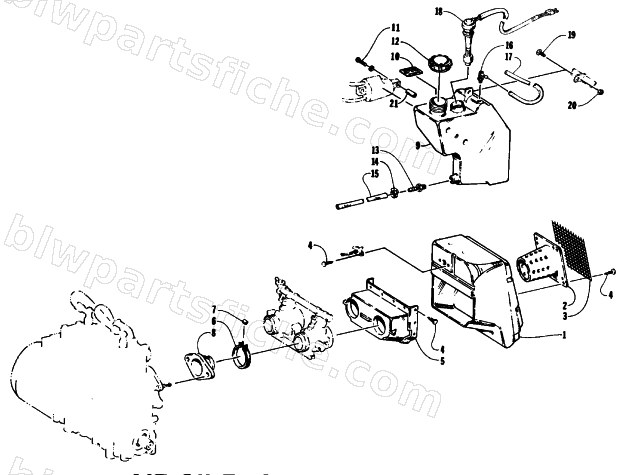

1994 Arctic Cat PANTERA — AIR SILENCER AND OIL TANK
1994 PANTERA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-293 | SILENCER,AIR | 1 | $147.95 | |
| 2 | 0670-151 | FUNNEL,AIR SILENCER | 1 | $29.95 | |
| 3 | 0670-155 | SCREEN,AIR INTAKE | 1 | $44.95 | |
| 4 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 5 | 0670-221 | BOOT,AIR SILENCER | 1 | $66.95 | |
| 6 | 0670-200 | CLAMP,CARB FLANGE-VM40 W/SPACER | 1 | $24.95 | |
| 7 | 0670-210 | SPACER, CLAMP- 9mm | 1 | $4.40 | |
| 8 | 0670-198 | FLANGE,CARB-40MM W/CLAMP | 1 | $84.95 | |
| 9 | 0670-244 | TANK,OIL W/INSERTS | 1 | $134.95 | |
| 10 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 11 | 0623-412 | SCREW,MACH-PHTRH-10-32X 1 3/8-Z&Y | 1 | $0.55 | |
| 12 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 13 | 0670-292 | FITTING,COOLANT TANK | 1 | $0.45 | |
| 14 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 15 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 16 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 17 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 18 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 20 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 |
