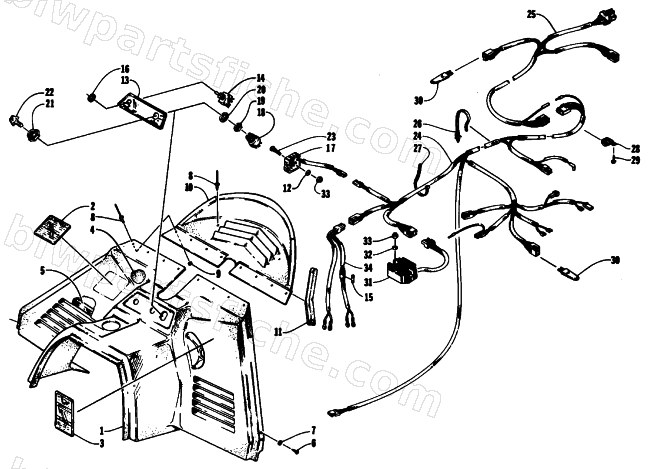

CONSOLE, SWITCHES, AND WIRING ASSEMBLIES
1994 PANTERA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0644-198 | WRENCH,NUT-SWITCH | 1 | $1.78 | |
| 1 | 0606-953 | CONSOLE | 1 | $445.95 | |
| 2 | 1611-414 | DECAL,CAUTION-BATTERY & ENGINE | 1 | $23.95 | |
| 4 | 0617-153 | FOAM,CONSOLE-LH | 1 | $15.95 | |
| 5 | 0617-152 | FOAM,CONSOLE-RH | 1 | $14.95 | |
| 6 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 7 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 8 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 | |
| 9 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 10 | 0606-631 | EXTENSION,CONSOLE | 1 | $91.95 | |
| 11 | 0606-683 | TRIM,CONSOLE EXTENSION | 1 | $41.95 | |
| 12 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 13 | 1611-367 | PLATE,CONSOLE-SWITCHES | 1 | $26.95 | |
| 14 | 0609-187 | SWITCH,TOGGLE-DPDT (THUMB/HAND WARMER) | 1 | $33.95 | |
| 15 | 0630-014 | FUSE,10 AMP | 1 | $10.95 | |
| 16 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 17 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 18 | 0609-082 | SWITCH,IGNITION | 1 | $54.95 | |
| 19 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 20 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 21 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 22 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 23 | 0623-096 | BOLT,RIB NECK-RDH 1/4-20X1.50 Z&Y | 1 | $0.55 | |
| 24 | 0686-163 | HARNESS,MAIN WIRING (REF:0686-130) | 1 | $373.95 | |
| 26 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 28 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 29 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 30 | 0609-069 | POSISTOR,WIRING | 1 | $23.39 | |
| 31 | 3007-912 | REGULATOR,VOLTAGE-DC(15V) | 1 | $383.95 | |
| 32 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 33 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 34 | 0686-143 | HARNESS,ELECTRIC START-EFI | 1 | $84.95 |
