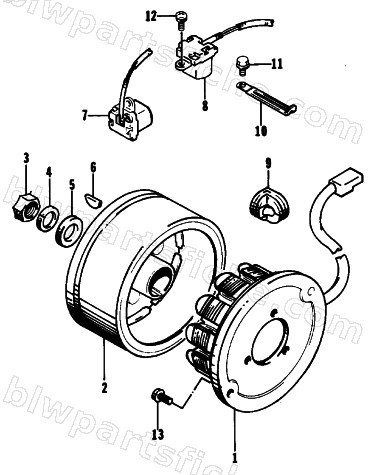

1994 Arctic Cat PROWLER 2-UP — MAGNETO
1994 PROWLER 2-UP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-456 | STATOR ASSY | 1 | $1,147.95 | |
| 2 | 3004-455 | FLYWHEEL ASSY | 1 | $834.95 | |
| 3 | 3007-556 | NUT | 1 | $3.95 | |
| 5 | 3005-175 | WASHER, 14.5X28X5 | 1 | $3.16 | |
| 6 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 7 | 3004-073 | SENSOR, IGN TIMING | 1 | $238.95 | |
| 9 | 3005-918 | GROMMET, MAGNETO LEAD WIRE | 1 | $5.92 | |
| 10 | 0691-039 | CLAMP,M6 | 1 | $0.89 | |
| 11 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 12 | 3007-553 | SCREW | 1 | $2.33 | |
| 13 | 3007-449 | BOLT | 1 | $3.16 |
