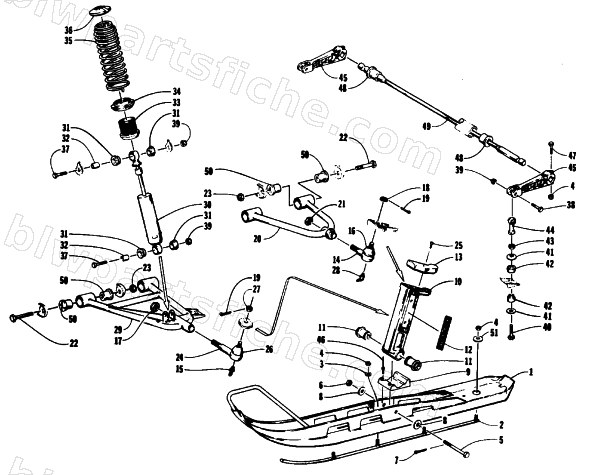

SKI AND FRONT SUSPENSION
1994 PROWLER 2-UP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-984 | SKI-WELDT-STEFFES 119 | 1 | $234.95 | |
| 2 | 0703-173 | SKAG,CARBIDE-WELDMT (EA) | 1 | $56.95 | |
| 3 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 4 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 5 | 0623-171 | SCREW,CAP 1/2-13 X 5.0 W/HOLE | 1 | $13.95 | |
| 6 | 0623-172 | NUT,HEX-SLOTTED-THK 1/2-13 | 1 | $38.95 | |
| 7 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 8 | 8050-342 | WASHER,FLAT- 1/2 X 1.250 X .100 Z&Y | 1 | $1.37 | |
| 10 | 0703-224 | SPINDLE W/BUSHINGS-RH | 1 | $410.95 | |
| 10 | 0703-225 | SPINDLE W/BUSHINGS-LH | 1 | $410.95 | |
| 11 | 0603-087 | BUSHING, SILENTBLOC FLANGED | 1 | $57.95 | |
| 12 | 1611-750 | DECAL,SPINDLE-WHITE | 1 | $17.95 | |
| 13 | 0603-262 | CAP,SPINDLE-RH | 1 | $9.59 | |
| 13 | 0603-263 | CAP,SPINDLE-LH | 1 | $10.95 | |
| 14 | 2603-812 | BALL JOINT,SPINDLE-UPPER | 1 | $112.95 | |
| 15 | 1623-654 | FITING,GREASE-1/4-28 STR-THRD FORM | 1 | $1.64 | |
| 15 | 0623-451 | FITTING,GREASE-STRAIGHT-METRIC | 1 | $1.95 | |
| 16 | 0603-258 | BOOT,DUST-BALL JOINT | 1 | $3.95 | |
| 17 | 0623-273 | NUT,NYL-LOC 3/4-16-Z&Y | 1 | $1.95 | |
| 18 | 0623-232 | NUT,HEX-SLOTTED 1/2-20UNF | 1 | $0.95 | |
| 19 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 20 | 1703-610 | ARM,FRONT-UPPER-MACH. | 1 | $267.95 | |
| 21 | 0623-455 | NUT,FLEX LOCK-THIN 5/8-18 Z&Y | 1 | $5.95 | |
| 22 | 8002-411 | SCREW,CAP-HH 1/2-13 X3.00 G5 Z&Y | 1 | $1.95 | |
| 23 | 8040-606 | NUT,HEX LOCK-NYL 1/2-13 Z&Y | 1 | $0.95 | |
| 25 | 0623-226 | SCREW,SELF TAP- #10-32 X 7/8 TYPE F B | 1 | $0.35 | |
| 27 | 0623-330 | NUT,HEX-SLOTTED 5/8-18 | 1 | $2.09 | |
| 28 | 0623-277 | FITTING,GREASE 1/4-28 SELF TAPPING-45 DE | 1 | $5.95 | |
| 28 | 0623-452 | FITTING,GREASE-45 DEGREE-METRIC | 1 | $3.95 | |
| 29 | 1703-614 | ARM,FRONT-LOWER-RH-MACH. | 1 | $318.95 | |
| 29 | 1703-615 | ARM,FRONT-LOWER-LH-MACH. | 1 | $296.95 | |
| 30 | 0603-420 | SHOCK ABSORBER-FRT SUSP | 1 | $256.95 | |
| 31 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 32 | 0604-309 | SLEEVE,SHOCK ABSORBER | 1 | $2.33 | |
| 33 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 34 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 35 | 0603-260 | SPRING,COMPRESSION-FRT SUSP | 1 | $97.95 | |
| 36 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 38 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 39 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 40 | 0623-159 | SCREW,CAPHEX 3/8-24 X 2.5 | 1 | $1.39 | |
| 41 | 0603-142 | RETAINER,BUSHING-SWAY BAR | 1 | $4.95 | |
| 42 | 0603-143 | BUSHING,SWAY BAR | 1 | $6.95 | |
| 43 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 44 | 0105-236 | BALL JOINT,TIE ROD (FEMALE) | 1 | $41.95 | |
| 45 | 0603-140 | ARM,SWAY BAR-PTD BLK | 1 | $108.95 | |
| 46 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 47 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 48 | 0603-151 | BEARING,SWAY BAR-SQUARE | 1 | $23.39 | |
| 49 | 0703-202 | SWAY BAR, 7/16-PAINTED | 1 | $108.95 | |
| 49 | 0703-193 | SWAY BAR, 1/2-PAINTED | 1 | $133.95 | |
| 51 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 |
