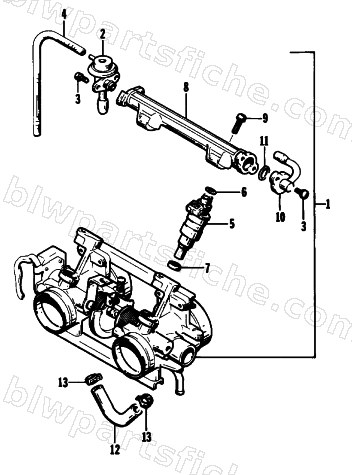

1994 Arctic Cat PROWLER 2-UP — THROTTLE BODY ASSEMBLY
1994 PROWLER 2-UP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-465 | BODY ASSY, THROTTLE | 1 | $2,376.95 | |
| 1 | 3004-466 | BODY ASSY, THROTTLE | 1 | $2,048.95 | |
| 2 | 3004-094 | REGULATOR, FUEL PRESSURE | 1 | $424.95 | |
| 3 | 3003-912 | SCREW,CLAMP-M5X12 | 1 | $1.69 | |
| 4 | 3004-196 | HOSE, AIR VENT-EFI FUEL REG. | 1 | $29.95 | |
| 5 | 3004-467 | INJECTOR ASSY, FUEL | 1 | $465.95 | |
| 5 | 3004-468 | INJECTOR ASSY, FUEL | 1 | $763.95 | |
| 5 | 3004-469 | INJECTOR ASSY, FUEL | 1 | $385.95 | |
| 8 | 3004-406 | PIPE, DELIVERY | 1 | $660.95 | |
| 9 | 3007-568 | SCREW | 1 | $3.16 | |
| 10 | 3004-120 | PIPE, FUEL INLET | 1 | $422.95 | |
| 11 | 3004-195 | O-RING-(USE 3005-703 KIT) | 1 | $21.95 | |
| 12 | 3004-194 | HOSE, WATER-EFI THROTTLE BODY | 1 | $29.95 | |
| 13 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 |
