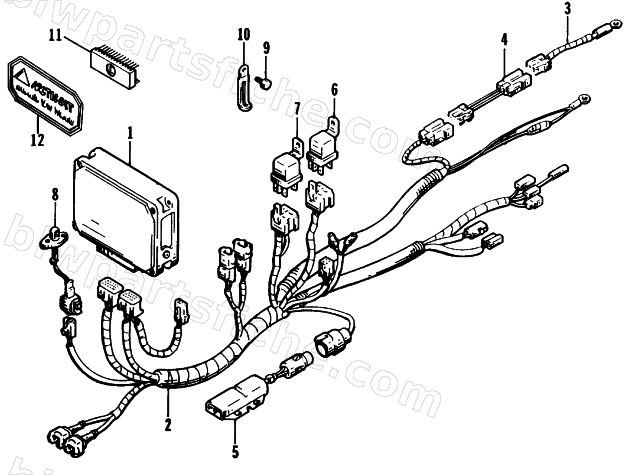

1994 Arctic Cat PROWLER — ECU AND ECU HARNESS ASSEMBLIES
1994 PROWLER
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0610-012 | HOSE, PRIMER 25' | 1 | $126.95 | |
| 1 | 3004-410 | CONTROLLER, FUEL INJ 440 EFI | 1 | $2,518.95 | |
| 1 | 3004-411 | CONTROLLER, FUEL INJ 440 EFI | 1 | $2,411.95 | |
| 2 | 3004-252 | HARNESS, MAIN-EFI | 1 | $1,168.95 | |
| 3 | 3003-946 | LEAD, BATT PLUS | 1 | $48.95 | |
| 7 | 3003-883 | RELAY ASSY,CONTROLLER | 1 | $148.95 | |
| 8 | 3004-018 | SENSOR, AIR TEMP. | 1 | $148.95 | |
| 9 | 3003-943 | BOLT, 4X8 | 1 | $19.25 | |
| 10 | 3002-278 | CLAMP,M6 | 1 | $3.95 | |
| 11 | 3004-303 | EPROM-RED-GAS | 1 | $373.95 | |
| 11 | 3004-304 | EPROM-YEL-GAS | 1 | $326.95 |
