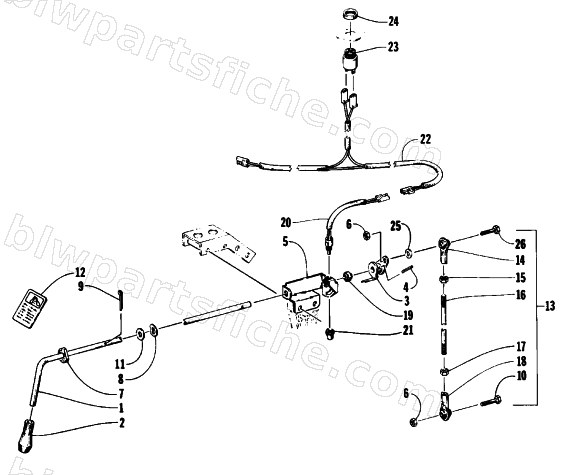

REVERSE SHIFT LEVER ASSEMBLY
1994 PUMA 2UP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0602-298 | LEVER,SHIFT | 1 | $61.95 | |
| 2 | 0602-152 | KNOB,SHIFT LEVER | 1 | $15.11 | |
| 3 | 0702-173 | ARM,SHIFT LEVER-WELDMT | 1 | $62.95 | |
| 4 | 0623-542 | PIN,SPRING-3/16 X 7/8 COILED BLK | 1 | $1.92 | |
| 5 | 0702-199 | BRKT,MTG-PIVOT-FABRICATED | 1 | $66.95 | |
| 6 | 8043-422 | NUT,5/16-18 HEX LOCK-MET TOP LOC GRA Z&Y | 1 | $0.68 | |
| 7 | 0617-094 | SEAL,FOAM-SHIFT LEVER | 1 | $3.71 | |
| 8 | 0623-130 | WASHER,SPRING-3/8 | 1 | $1.50 | |
| 9 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 10 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 11 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 14 | 0602-322 | ROD END,5/16-24-RH | 1 | $29.95 | |
| 15 | 0123-144 | NUT,HEX-JAM 5/16-24 NF ZN | 1 | $0.26 | |
| 16 | 0602-464 | ROD,SHIFT | 1 | $28.95 | |
| 17 | 0623-260 | NUT,HEX JAM 5/16-24 NF L H | 1 | $1.09 | |
| 18 | 0602-305 | ROD END L.H. 5/16-24 UNF | 1 | $22.95 | |
| 19 | 0602-297 | BEARING,SPHERICAL-.375 DIA | 1 | $58.95 | |
| 20 | 0630-011 | SWITCH, ALARM | 1 | $60.95 | |
| 21 | 0630-013 | BOOT,SWITCH-REVERSE | 1 | $20.63 | |
| 22 | 0686-121 | HARNESS,WIRING-ALARM | 1 | $58.95 | |
| 23 | 0630-010 | ALARM,REVERSE | 1 | $112.95 | |
| 24 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 25 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 26 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 |
