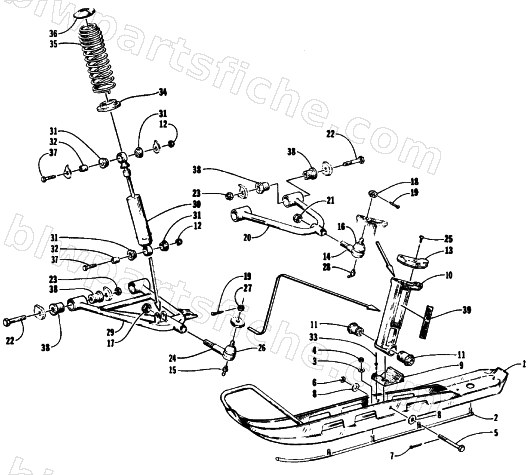

SKI AND FRONT SUSPENSION
1994 PUMA 2UP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-984 | SKI-WELDT-STEFFES 119 | 1 | $234.95 | |
| 2 | 0703-175 | SKAG-PTD BLK | 1 | $26.95 | |
| 3 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 4 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 5 | 0623-171 | SCREW,CAP 1/2-13 X 5.0 W/HOLE | 1 | $13.95 | |
| 6 | 0623-172 | NUT,HEX-SLOTTED-THK 1/2-13 | 1 | $38.95 | |
| 7 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 8 | 8050-342 | WASHER,FLAT- 1/2 X 1.250 X .100 Z&Y | 1 | $1.37 | |
| 10 | 0703-224 | SPINDLE W/BUSHINGS-RH | 1 | $410.95 | |
| 10 | 0703-225 | SPINDLE W/BUSHINGS-LH | 1 | $410.95 | |
| 11 | 0603-087 | BUSHING, SILENTBLOC FLANGED | 1 | $57.95 | |
| 12 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 13 | 0603-262 | CAP,SPINDLE-RH | 1 | $9.59 | |
| 13 | 0603-263 | CAP,SPINDLE-LH | 1 | $10.95 | |
| 14 | 2603-812 | BALL JOINT,SPINDLE-UPPER | 1 | $112.95 | |
| 15 | 1623-654 | FITING,GREASE-1/4-28 STR-THRD FORM | 1 | $1.64 | |
| 16 | 0623-451 | FITTING,GREASE-STRAIGHT-METRIC | 1 | $1.95 | |
| 16 | 0603-258 | BOOT,DUST-BALL JOINT | 1 | $3.95 | |
| 17 | 0623-273 | NUT,NYL-LOC 3/4-16-Z&Y | 1 | $1.95 | |
| 18 | 0623-232 | NUT,HEX-SLOTTED 1/2-20UNF | 1 | $0.95 | |
| 19 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 20 | 1703-611 | ARM,FRONT-UPPER-MACH. | 1 | $213.95 | |
| 21 | 0623-274 | NUT,JAM 5/8-18-Z&Y | 1 | $0.95 | |
| 22 | 8002-411 | SCREW,CAP-HH 1/2-13 X3.00 G5 Z&Y | 1 | $1.95 | |
| 23 | 8040-606 | NUT,HEX LOCK-NYL 1/2-13 Z&Y | 1 | $0.95 | |
| 25 | 0623-226 | SCREW,SELF TAP- #10-32 X 7/8 TYPE F B | 1 | $0.35 | |
| 27 | 0623-330 | NUT,HEX-SLOTTED 5/8-18 | 1 | $2.09 | |
| 28 | 0623-277 | FITTING,GREASE 1/4-28 SELF TAPPING-45 DE | 1 | $5.95 | |
| 28 | 0623-452 | FITTING,GREASE-45 DEGREE-METRIC | 1 | $3.95 | |
| 29 | 1703-612 | ARM,FRONT-LOWER-RH-MACH. | 1 | $268.95 | |
| 29 | 1703-613 | ARM,FRONT-LOWER-LH-MACH. | 1 | $260.95 | |
| 30 | 0603-398 | SHOCK ABSORBER-FRONT SUSPENSION | 1 | $184.95 | |
| 31 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 32 | 0604-309 | SLEEVE,SHOCK ABSORBER | 1 | $2.33 | |
| 33 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 34 | 0603-399 | RETAINER,SPRING-SHOCK | 1 | $43.95 | |
| 35 | 0603-426 | SPRING,COMPRESSION-FRONT SUSPENSION | 1 | $77.95 | |
| 36 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 39 | 1611-750 | DECAL,SPINDLE-WHITE | 1 | $17.95 |
