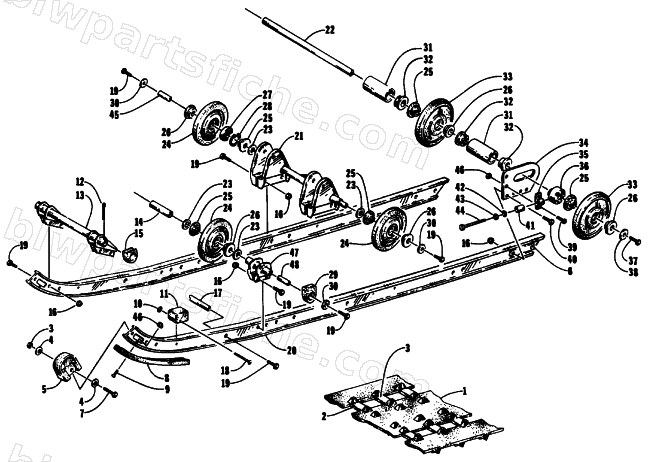

1994 Arctic Cat PUMA DELUXE — SLIDE RAIL AND TRACK ASSEMBLY
1994 PUMA DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1602-756 | TRACK,15 X121X.85-BUMP | 1 | $946.95 | |
| 2 | 2602-383 | CLIP,GUIDE | 1 | $4.26 | |
| 3 | 2602-384 | CLIP,WEAR | 1 | $3.57 | |
| 4 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 5 | 0604-231 | NOSE PIECE,SLIDE RAIL-BLACK | 1 | $15.11 | |
| 6 | 0604-152 | SPACER,REAR AXLE HOUSING | 1 | $7.95 | |
| 7 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 9 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 10 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 11 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 13 | 0704-238 | BRKT,FRONT CROSSBRACE-WELDMT | 1 | $128.95 | |
| 14 | 0603-105 | SPACER,AUX WHEEL-INSIDE | 1 | $13.73 | |
| 15 | 0604-582 | ROLLER/SLIDE,FRONT SPRING | 1 | $3.30 | |
| 16 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 18 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 19 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 20 | 0704-237 | RAIL,SLIDE-FORMED | 1 | $145.95 | |
| 21 | 0704-240 | BRACKET,MTG-FRONT ARM | 1 | $142.95 | |
| 23 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 24 | 0114-240 | WHEEL,IDLER | 1 | $53.95 | |
| 25 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 26 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 27 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 28 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 29 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 30 | 0123-260 | WSHR,.343X1 1/8X.120TH Z&Y | 1 | $1.50 | |
| 31 | 0604-535 | SPACER,REAR WHEEL | 1 | $14.95 | |
| 32 | 0604-968 | BUSHING,SPACER-REAR WHEEL | 1 | $9.59 | |
| 33 | 0604-210 | WHEEL,IDLER-CENTER | 1 | $53.95 | |
| 34 | 0604-131 | HOUSING,REAR AXLE | 1 | $50.95 | |
| 35 | 0604-206 | TRACK ADJUSTOR-MACHINED | 1 | $13.73 | |
| 36 | 0604-165 | BUSHING,REAR WHEEL-ADJ. | 1 | $10.97 | |
| 37 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 38 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 39 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 40 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 | |
| 41 | 0604-298 | SPACER,SHOCK LINK-Z&Y | 1 | $33.95 | |
| 42 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 43 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 44 | 0623-123 | SCREW,CAP-HEX-3/8-16X5 | 1 | $2.47 | |
| 46 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 47 | 0704-201 | BRACKET,AUX WHEEL-PTD BLK | 1 | $26.95 |
