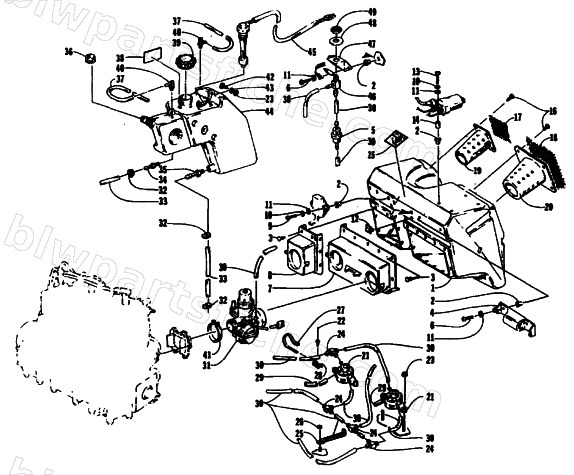

1994 Arctic Cat THUNDERCAT MOUNTAIN CAT W — OIL TANK, CARBURETOR, FUEL PUMP, AND SILENCER
1994 THUNDERCAT MOUNTAIN CAT W
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-111 | SILENCER,AIR-W/RIVNUTS | 1 | $119.95 | |
| 2 | 0623-084 | RIVET NUT,FLAT HEAD 10-32UNF X .130-.180 | 1 | $0.95 | |
| 3 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 4 | 4639-549 | RIVET MOUNTED PLUG HOLDER | 1 | $9.95 | |
| 5 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 6 | 0623-413 | SCREW,MACH-PHTRH-10-32X 1/2-Z&Y | 1 | $0.25 | |
| 8 | 1670-393 | BOOT, AIR SILENCER | 1 | $74.95 | |
| 9 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 10 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 11 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 12 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 14 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 15 | 0611-978 | DECAL,FUEL SHUT-OFF VALVE | 1 | $10.95 | |
| 17 | 0670-208 | SCREEN,AIR INTAKE | 1 | $16.49 | |
| 18 | 0670-207 | SCREEN,AIR INTAKE | 1 | $27.95 | |
| 19 | 0670-205 | FUNNEL,AIR SILENCER 2 | 1 | $26.95 | |
| 20 | 0670-203 | FUNNEL,AIR SILENCER 3.5 | 1 | $26.95 | |
| 21 | 0670-189 | FUEL PUMP-ASSEMBLY(DF52-138) | 1 | $156.95 | |
| 22 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 23 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 24 | 0109-332 | T CONN,GAS LINE | 1 | $3.02 | |
| 25 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 26 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 28 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 29 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 30 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 30 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 31 | 0770-098 | CARB,VM38-270W/CARB SWITCH | 1 | $625.95 | |
| 32 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 33 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 34 | 0670-292 | FITTING,COOLANT TANK | 1 | $0.45 | |
| 35 | 0670-117 | OUTLET,OILTANK-5/16 TUBE | 1 | $3.95 | |
| 36 | 0670-035 | CAP,TANK-WATER | 1 | $16.49 | |
| 37 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 38 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 39 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 40 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 41 | 3004-212 | CLAMP, INTAKE,M52 | 1 | $27.95 | |
| 43 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 45 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 46 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 47 | 0670-284 | BRACKET,MOUNTING-FUEL SHUT-OFF VALVE | 1 | $10.97 | |
| 48 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 49 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 |
