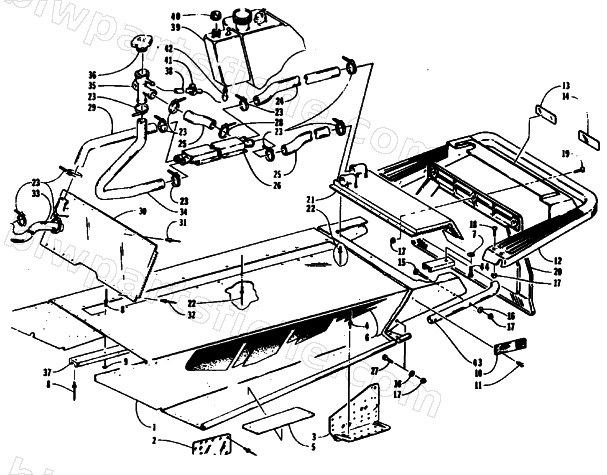

1994 Arctic Cat THUNDERCAT MOUNTAIN CAT W — TUNNEL, COOLING, AND REAR BUMPER
1994 THUNDERCAT MOUNTAIN CAT W
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-287 | BODY ASSY, TUNNEL | 1 | $756.95 | |
| 2 | 2706-277 | PLATE,BODY REINF-PTD BLK | 1 | $27.95 | |
| 3 | 0706-730 | BRKT,SUSPENSION-WELDED-RH | 1 | $47.95 | |
| 3 | 0706-731 | BRKT,SUSPENSION-WELDED-LH | 1 | $52.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 6 | 1611-770 | DECAL,TUNNEL-RH | 1 | $77.95 | |
| 6 | 1611-771 | DECAL,TUNNEL-LH | 1 | $68.95 | |
| 7 | 0623-076 | NUT,SQUARE 1/4-20 | 1 | $22.01 | |
| 8 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 9 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 10 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 0716-223 | BUMPER W/STEEL INSERT | 1 | $181.95 | |
| 13 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8007-585 | SCREW,MACH-CRTH 1/4-20X1.50 G2 Z&Y | 1 | $0.40 | |
| 19 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 20 | 0616-612 | SNOWFLAP,30 DEG.FLIP UP WHITE | 1 | $54.95 | |
| 21 | 0706-564 | HEAT EXCHANGER, REAR-WELDMT | 1 | $226.95 | |
| 22 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 23 | 0214-015 | CLAMP,HOSE-#16/#17 | 1 | $2.19 | |
| 24 | 0610-126 | HOSE, REAR HEAT EXCHANGER-RH | 1 | $54.95 | |
| 25 | 0610-127 | HOSE, REAR HEAT EXCHANGER-LH | 1 | $44.95 | |
| 26 | 0706-911 | EXCH,HEAT-TUNNEL-WELD'T | 1 | $342.95 | |
| 27 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 28 | 0623-424 | CLAMP,HOSE-1.375 DIA HOSE | 1 | $15.11 | |
| 29 | 0610-039 | HOSE,FRT EXCH TO RH TUBE | 1 | $26.95 | |
| 30 | 0706-826 | HEAT EXCHANGER FRONT-WELDMENT | 1 | $206.95 | |
| 31 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 32 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 34 | 0610-123 | HOSE,LH SIDE TO FILLER NECK (0610-068) | 1 | $58.95 | |
| 35 | 2606-859 | FILLER NECK | 1 | $38.95 | |
| 36 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 37 | 0706-740 | WEARSTRIP,TUNNEL | 1 | $46.95 | |
| 38 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 40 | 0670-035 | CAP,TANK-WATER | 1 | $16.49 | |
| 41 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 42 | 0670-292 | FITTING,COOLANT TANK | 1 | $0.45 | |
| 43 | 2706-600 | INSERT,BUMPER-PTD BLK | 1 | $64.95 | |
| 44 | 8009-577 | SCREW,MACH-CRPH 1/4-20X.50 G2 Z&Y | 1 | $0.15 | |
| 47 | 0610-041 | HOSE,REAR EXCH TO LH TUBE | 1 | $21.95 |
