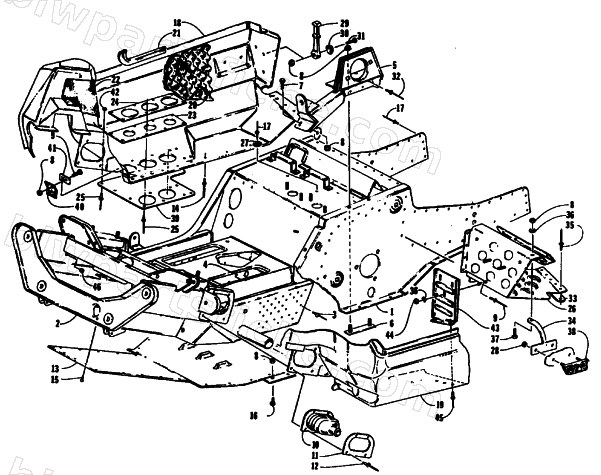

1994 Arctic Cat THUNDERCAT MOUNTAIN CAT — FRONT FRAME, BELLY PAN AND FOOTREST ASSEMBLY
1994 THUNDERCAT MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-202 | FRONT END,CHASSIS | 1 | $599.95 | |
| 2 | 0707-174 | FRONT END-WELDMENT | 1 | $1,428.95 | |
| 3 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 4 | 0605-213 | PLATE,BACKING-FRONT COVER | 1 | $15.11 | |
| 5 | 1707-474 | SUPPORT,BEARING-PTD BLK | 1 | $223.95 | |
| 6 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 7 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 8 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 9 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 10 | 0605-187 | BOOT,STEERING-DRAG LINK | 1 | $36.95 | |
| 11 | 0605-188 | FLANGE,MOUNTING-STEERING BOOT | 1 | $4.95 | |
| 12 | 8060-711 | RIVET,BLIND-DH SS610 BLK | 1 | $1.50 | |
| 13 | 0616-028 | BELLYPAN-PLASTIC | 1 | $172.95 | |
| 14 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 15 | 0623-569 | SCREW,SELF TAP-TSFH #10-32X1/2 TYPF Z&Y | 1 | $0.68 | |
| 17 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 18 | 0616-486 | BELLYPAN,OUTER-RH | 1 | $324.95 | |
| 19 | 0616-487 | BELLYPAN,OUTER-LH | 1 | $293.95 | |
| 20 | 0617-158 | FOAM,BELLYPAN-RH | 1 | $14.95 | |
| 20 | 0617-159 | FOAM,BELLYPAN-LH | 1 | $21.95 | |
| 21 | 0706-955 | TRIM,BELLYPAN-10FT ROLL (0619-158) | 1 | $136.95 | |
| 22 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 23 | 0612-301 | SEAL,EXHAUST OUTLET | 1 | $37.95 | |
| 24 | 0612-302 | RING,EXHAUST OUTLET | 1 | $13.95 | |
| 25 | 8061-510 | RIVET,BLIND-LF SS58 BLACK | 1 | $0.81 | |
| 26 | 0606-198 | FOOTREST-RH,PAINTED | 1 | $157.95 | |
| 26 | 0716-023 | FOOTREST,LH-W/STUDS | 1 | $74.95 | |
| 27 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 28 | 0123-709 | NUT,HEX 10-32 W/LOCKWASHER | 1 | $0.40 | |
| 29 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 30 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 | |
| 31 | 8009-614 | SCREW,MACH-CRPH 1/4-20X1.25 G2 Z&BLK | 1 | $0.25 | |
| 32 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 33 | 0616-368 | PLATE,BACKING-FOOTREST/RIVET | 1 | $1.95 | |
| 34 | 0706-806 | BRACKET,REINFORCEMENT-WELDMENT-RH | 1 | $75.95 | |
| 34 | 0706-807 | BRACKET,REINFORCEMENT-WELDMENT-LH | 1 | $43.95 | |
| 35 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 36 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 37 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 38 | 0606-704 | BUMPER,POD | 1 | $14.95 | |
| 39 | 0637-062 | EXHAUST SHIELD KIT | 1 | $34.95 | |
| 40 | 0612-278 | DEFLECTOR, EXHAUST OUTLET | 1 | $13.73 | |
| 41 | 0612-359 | PLATE,BACKING-EXHAUST DEFLECTOR | 1 | $13.95 | |
| 42 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 43 | 0616-387 | GUARD,DRIVE BELT-FOOTREST | 1 | $33.95 | |
| 44 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 45 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 |
