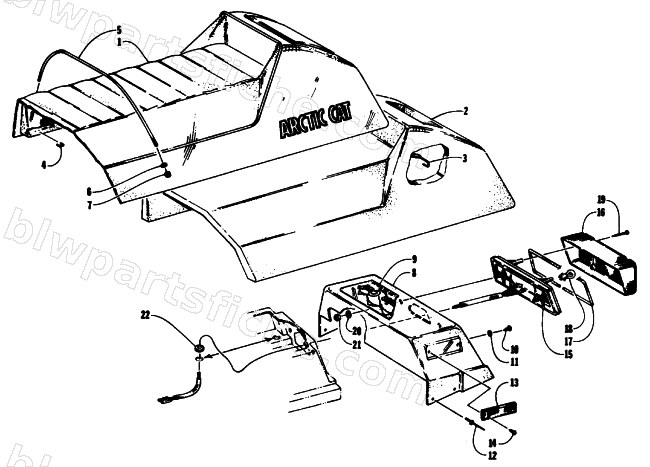

SEAT AND TAILLIGHT ASSEMBLIES
1994 WILDCAT EFI MOUNTAIN CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0716-010 | COVER, SEAT W/ARCTIC CAT-GRN | 1 | $337.95 | |
| 2 | 0706-819 | FOAM,SEAT CUSHION | 1 | $219.95 | |
| 6 | 8050-152 | WASHER,FLAT- #10 X .469 X .049 Z&Y | 1 | $3.16 | |
| 7 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 8 | 0616-022 | COVER,TUNNEL EXTENSION | 1 | $128.95 | |
| 9 | 1611-629 | DECAL,MOUNTAIN CAT | 1 | $51.95 | |
| 10 | 0623-012 | SCREW, #8X1/2 TR HD CR | 1 | $0.15 | |
| 12 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 13 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 14 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 15 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 16 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 17 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 18 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 19 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 20 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 21 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 22 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 |
