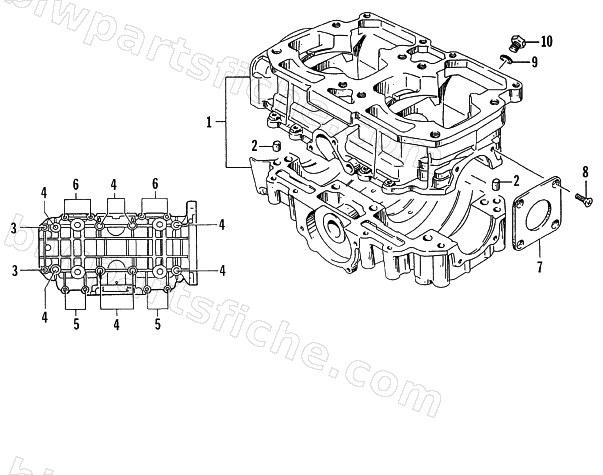

CRANKCASE ASSEMBLY
1994 WILDCAT EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-940 | CRANKCASE ASS'Y (700 L/C) | 1 | $1,192.95 | |
| 2 | 3002-012 | PIN, DOWEL 9 X 12 | 1 | $2.88 | |
| 3 | 3004-424 | BOLT,M8X70 | 1 | $2.95 | |
| 4 | 3004-425 | BOLTM10X85 | 1 | $4.95 | |
| 5 | 3007-386 | BOLT | 1 | $3.16 | |
| 6 | 3007-381 | BOLT | 1 | $3.16 | |
| 7 | 3003-444 | PLATE, OIL SEAL 88 650 WILDCAT | 1 | $52.95 | |
| 8 | 3007-393 | SCREW,M6X16 | 1 | $2.06 | |
| 9 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 | |
| 10 | 3003-399 | PLUG (CYLINDER/CRANK),9MM | 1 | $13.95 |
