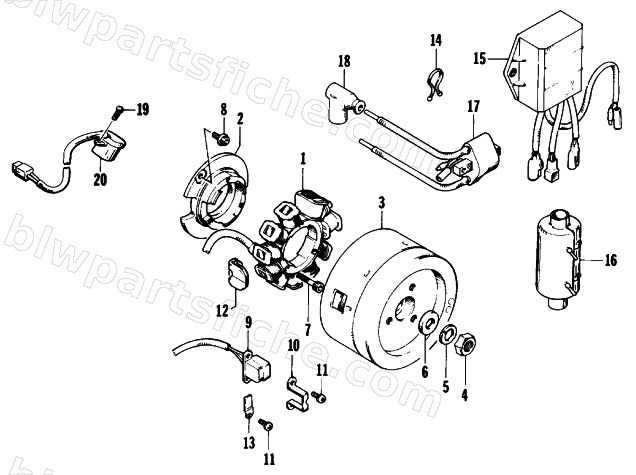

ELECTRICAL EQUIPMENT/MAGNETO
1994 WILDCAT EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-907 | STATOR | 1 | $1,000.95 | |
| 2 | 3004-270 | BASE, STATOR | 1 | $174.95 | |
| 4 | 3007-556 | NUT | 1 | $3.95 | |
| 5 | 3007-427 | LOCK WASHER | 1 | $4.40 | |
| 6 | 3005-175 | WASHER, 14.5X28X5 | 1 | $3.16 | |
| 7 | 3005-955 | BOLT, MAGNETO-6 X 30 | 1 | $1.95 | |
| 8 | 3007-449 | BOLT | 1 | $3.16 | |
| 9 | 3006-453 | SENSOR,IGNITION | 1 | $279.95 | |
| 10 | 3003-972 | CLAMP | 1 | $24.77 | |
| 11 | 3007-553 | SCREW | 1 | $2.33 | |
| 12 | 3003-795 | GROMMET,MAGNETO LEAD WIRE | 1 | $20.63 | |
| 13 | 3002-317 | CLAMP,M3 | 1 | $2.95 | |
| 14 | 3002-278 | CLAMP,M6 | 1 | $3.95 | |
| 15 | 3004-098 | CDI | 1 | $1,039.95 | |
| 16 | 3003-881 | BOOT,WIRING HARNESS | 1 | $13.95 | |
| 17 | 3005-185 | COIL SET, IGNITION | 1 | $305.95 | |
| 18 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 19 | 3007-371 | BOLT (6X12) | 1 | $3.16 |
