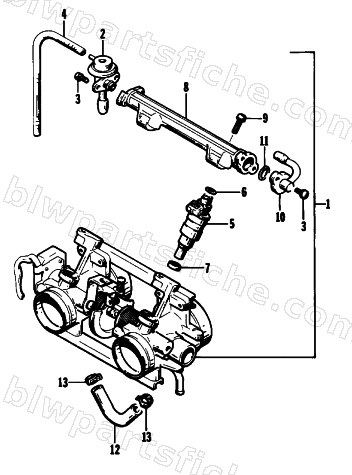

1994 Arctic Cat WILDCAT EFI — THROTTLE BODY ASSEMBLY
1994 WILDCAT EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-113 | THROTTLE BODY ASS'Y-RED | 1 | $2,468.95 | |
| 1 | 3004-114 | THROTTLE BODY ASS'Y-YEL | 1 | $2,791.95 | |
| 1 | 3004-115 | THROTTLE BODY ASS'Y-BLU | 1 | $2,468.95 | |
| 2 | 3004-094 | REGULATOR, FUEL PRESSURE | 1 | $424.95 | |
| 3 | 3007-553 | SCREW | 1 | $2.33 | |
| 4 | 3004-196 | HOSE, AIR VENT-EFI FUEL REG. | 1 | $29.95 | |
| 5 | 3003-956 | INJECTOR-CENTER(YEL) | 1 | $559.95 | |
| 5 | 3003-957 | INJECTOR-LOWER(BLUE) | 1 | $559.95 | |
| 8 | 3004-119 | PIPE, DELIVERY | 1 | $581.95 | |
| 9 | 3007-568 | SCREW | 1 | $3.16 | |
| 10 | 3004-096 | PIPE, COMP.-FUEL INLET | 1 | $462.95 | |
| 11 | 3004-195 | O-RING-(USE 3005-703 KIT) | 1 | $21.95 | |
| 12 | 3004-194 | HOSE, WATER-EFI THROTTLE BODY | 1 | $29.95 | |
| 13 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 |
