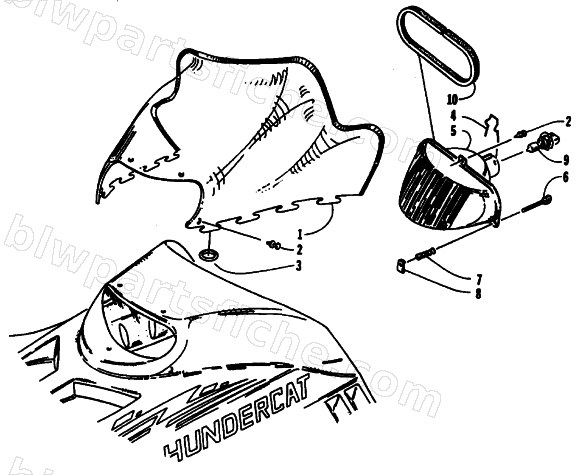

1994 Arctic Cat WILDCAT EFI — WINDSHIELD AND HEADLIGHT
1994 WILDCAT EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 3 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 4 | 0609-164 | CLIP,RETAINING-HEADLIGHT BULB | 1 | $20.95 | |
| 5 | 0639-963 | KIT, HEADLIGHT REPLACEMENT | 1 | $229.95 | |
| 6 | 0623-372 | SCREW,THUMB-1/4X20X3.0 | 1 | $5.92 | |
| 7 | 0623-380 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $2.47 | |
| 8 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 9 | 0609-171 | BULB,HEADLIGHT HB5/9007 | 1 | $65.95 | |
| 10 | 0617-170 | SEAL,HEADLIGHT .50 X .37 X 30 | 1 | $2.95 |
