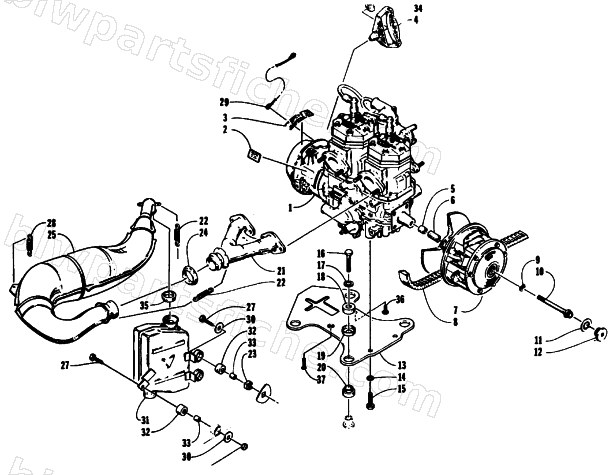

1994 Arctic Cat ZR 440 — ENGINE AND RELATED PARTS
1994 ZR 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-099 | ENGINE 440 L/C 1994 | 1 | $2,126.95 | |
| 4 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 5 | 0646-107 | SPACER,ALUMINUM-CLUTCH | 1 | $29.95 | |
| 6 | 0646-106 | SPACER,URETHANE-CLUTCH | 1 | $5.09 | |
| 7 | 0725-139 | CLUTCH, DRIVE ASSY | 1 | $1,015.95 | |
| 8 | 0627-012 | BELT,DRIVE REG. COMPOUND 12.2 CTRS | 1 | $92.95 | |
| 9 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 10 | 0623-206 | BOLT,COUNTERBORE-1/2-20X5.5 | 1 | $20.63 | |
| 11 | 0646-114 | WASHER,INTERNAL LOCK-HD-7/8 | 1 | $1.64 | |
| 12 | 0646-113 | CAP,RETAINER-COMET CLUTCH | 1 | $27.95 | |
| 13 | 0608-114 | PLATE,MTG-ENGINE | 1 | $242.95 | |
| 14 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 15 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 16 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 17 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 18 | 0108-199 | MOUNT,ENGINE-FEMALE | 1 | $12.35 | |
| 19 | 0123-745 | WASHER,CUP | 1 | $22.01 | |
| 20 | 0108-198 | MOUNT,ENGINE-MALE | 1 | $5.95 | |
| 21 | 0712-037 | MANIFOLD,EXHAUST-WELDT | 1 | $168.95 | |
| 22 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 23 | 0623-157 | RETAINER NUT,1/4-20 | 1 | $3.85 | |
| 24 | 0612-131 | GASKET,EXHAUST-HEADER JOINT | 1 | $29.95 | |
| 25 | 0712-106 | EXPANSION CHAMBER-ASSY | 1 | $612.95 | |
| 26 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 27 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 28 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 29 | 0686-099 | HARNESS,ENGINE GROUND | 1 | $9.59 | |
| 30 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 31 | 0712-109 | RESONATOR,EXHAUST-WELDT | 1 | $308.95 | |
| 32 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 34 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 35 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 36 | 0623-015 | SCREW,1/2-13UNC X 1.25 | 1 | $4.95 | |
| 37 | 0623-503 | SCREW,CAP-BUTTON HEAD 1/2-13X1.25 | 1 | $1.78 | |
| 38 | 3004-432 | SCREW, OIL PUMP-M6X25 | 1 | $3.16 | |
| 39 | 0623-352 | SCREW,CAP-HH 5MMX.8X12 CL8.8 Z&Y | 1 | $0.26 | |
| 40 | 3007-628 | WASHER, LOCK-5MM | 1 | $3.30 |
