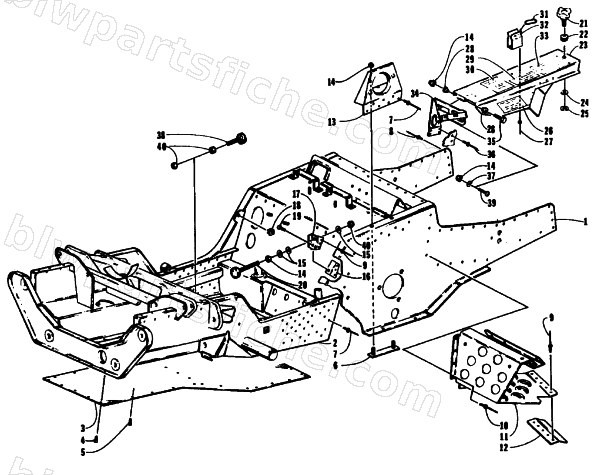

1994 Arctic Cat ZR 440 — FRONT FRAME, FOOTREST, AND CLUTCH SHIELD ASSEMBLY
1994 ZR 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-206 | FRONT END-CHASSIS | 1 | $1,039.95 | |
| 2 | 0707-166 | FRONT END-WELDT | 1 | $1,390.95 | |
| 4 | 0623-219 | SCREW,TAPPING 10-24X3/4 TYPE F,TYPE 1 CR | 1 | $0.68 | |
| 5 | 0623-569 | SCREW,SELF TAP-TSFH #10-32X1/2 TYPF Z&Y | 1 | $0.68 | |
| 6 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 7 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 8 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 9 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 10 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 11 | 0706-916 | FOOTREST-RH (PAINTED BLK - 0616-286) | 1 | $165.95 | |
| 11 | 0706-917 | FOOTREST-LH (PAINTED BLK - 0616-287) | 1 | $163.95 | |
| 12 | 0616-304 | DEFLECTOR,SNOW | 1 | $5.95 | |
| 13 | 0707-146 | SUPPORT,BEARING-WELDMENT | 1 | $81.95 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 0707-169 | BRACKET,TORQUE BUMPER-WELDMENT | 1 | $42.95 | |
| 18 | 0623-157 | RETAINER NUT,1/4-20 | 1 | $3.85 | |
| 19 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 20 | 0608-091 | BUMPER,TORQUE{2.90"}-ENGINE | 1 | $33.95 | |
| 21 | 0607-095 | KNOB,THREADED MALE STUD | 1 | $24.77 | |
| 22 | 0607-097 | GROMMET,GUARD | 1 | $1.92 | |
| 23 | 0707-841 | SHIELD,CLUTCH-ASS'Y-PTD BLK | 1 | $120.95 | |
| 24 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 25 | 0607-096 | RETAINER,KNOB-CLUTCH SHLD | 1 | $20.63 | |
| 26 | 1611-582 | DECAL,CAUTION-JETTING/STORAGE | 1 | $13.73 | |
| 27 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 28 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 29 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 30 | 1611-414 | DECAL,CAUTION-BATTERY & ENGINE | 1 | $23.95 | |
| 31 | 0606-914 | O-RING,DRIVE BELT HOLDER | 1 | $2.47 | |
| 32 | 0636-659 | KIT, DRIVE BELT HOLDER | 1 | $13.73 | |
| 33 | 1611-835 | DECAL,JET CHART ZR 440 | 1 | $6.95 | |
| 34 | 0616-439 | BRKT,MTG-GUARD | 1 | $37.95 | |
| 35 | 8002-050 | SCREW,CAP-HH 1/4-20 X2.75 G5 Z&Y | 1 | $2.95 | |
| 36 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 38 | 0608-076 | BUMPER,TORQUE{1.25"}-ENGINE | 1 | $22.01 | |
| 39 | 0623-472 | SCREW, CAP HSBH 1/4X20X1- Z&Y | 1 | $0.95 | |
| 41 | 0623-469 | OPEN/CLOSED BUSHING | 1 | $0.75 |
