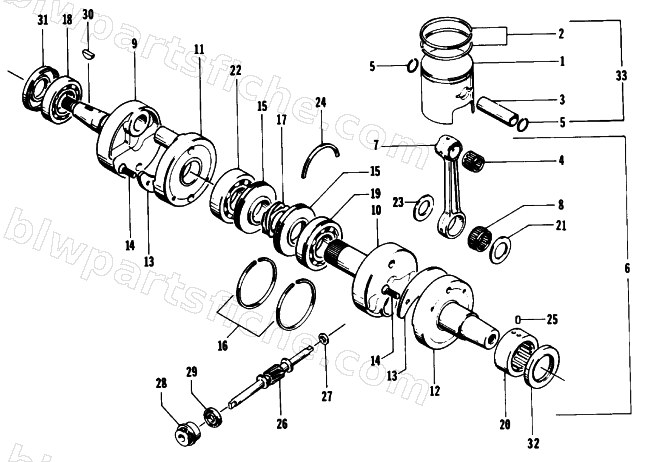

PISTON AND CRANKSHAFT
1994 ZR 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-993 | PISTON,ASSY 440L/C-DOUBLE RING | 1 | $274.95 | |
| 2 | 3003-989 | RING,PISTON-SET | 1 | $113.95 | |
| 3 | 3003-732 | PIN,PISTON | 1 | $32.95 | |
| 4 | 3003-107 | BEARING,PISTON PIN,ROLLER,M18X23X22 | 1 | $30.95 | |
| 5 | 3003-537 | CIRCLIP,PISTON PIN,M18 | 1 | $2.75 | |
| 6 | 3003-832 | CRANKSHAFT ASSY, 440 L/C-91 | 1 | $2,051.95 | |
| 7 | 3003-305 | ROD,CONNECTING | 1 | $268.95 | |
| 8 | 3004-514 | BEARING,LOWER ROD,M24X30X20 | 1 | $121.95 | |
| 10 | 3003-833 | CRANKSHAFT,MIDDLE | 1 | $561.95 | |
| 11 | 3003-835 | WHEEL,CRANKSHAFT | 1 | $465.95 | |
| 12 | 3003-837 | CRANKSHAFT,LH | 1 | $496.95 | |
| 13 | 3003-836 | BALANCER,CRANKSHAFT | 1 | $56.95 | |
| 14 | 3007-440 | SCREW | 1 | $2.06 | |
| 15 | 3004-698 | RACE,MIDDLE SEAL | 1 | $82.95 | |
| 16 | 3003-817 | RING,MID CRANK SEAL | 1 | $32.95 | |
| 17 | 3004-178 | GEAR, DRIVE-OIL PUMP | 1 | $324.95 | |
| 18 | 3005-210 | BEARING,BALL,M30 | 1 | $101.95 | |
| 19 | 3003-164 | BEARING, CRANKSHAFT,BALL,M30X72X16 | 1 | $108.95 | |
| 20 | 3003-805 | BEARING,CRANK-LH,ROLLER,M40X64X30 | 1 | $244.95 | |
| 21 | 3002-590 | WASHER,FLAT M24 | 1 | $15.11 | |
| 23 | 3003-800 | WASHER,CRANK PIN BEARING | 1 | $17.87 | |
| 24 | 3003-216 | C-RING, CRANKSHAFT,M72 | 1 | $6.06 | |
| 25 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 26 | 3005-324 | GEAR, DRIVEN | 1 | $187.95 | |
| 27 | 3005-049 | SHIM,10MM | 1 | $3.57 | |
| 28 | 3005-909 | SEAL, MECHANICAL WATER PUMP | 1 | $66.95 | |
| 29 | 3007-431 | OIL SEAL-10X22X6 | 1 | $16.49 | |
| 30 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 31 | 3005-188 | SEAL,CRANKSHAFT-RH,M30 | 1 | $77.95 | |
| 32 | 3003-759 | R/B 0930-051 | 1 | $54.95 |
