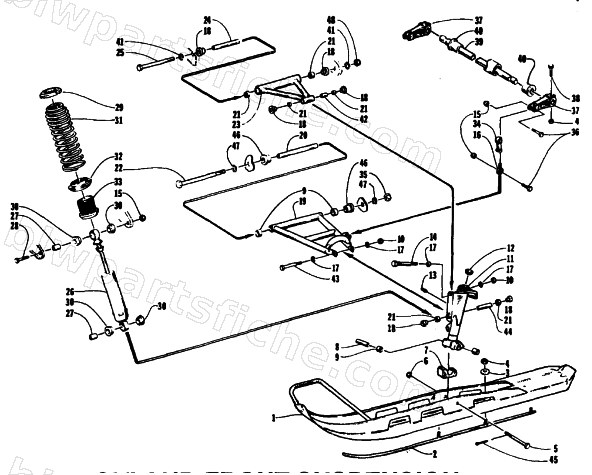

SKI AND FRONT SUSPENSION
1994 ZR 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-244 | SKI WELDMENT | 1 | $191.95 | |
| 2 | 0703-251 | SKAG,CONSUMER-WELDMENT | 1 | $107.95 | |
| 3 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 4 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 5 | 0623-080 | SCREW,CAP W/HOLE-HH 7/16-14X4 1/4 GR5 Z& | 1 | $20.63 | |
| 6 | 0623-027 | NUT,FLEX7/16-14 NC | 1 | $6.95 | |
| 7 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 8 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 9 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 10 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 11 | 0703-256 | SPINDLE/HOUSING-ASSY-RH | 1 | $367.95 | |
| 11 | 0703-257 | SPINDLE/HOUSING-ASSY-LH | 1 | $378.95 | |
| 12 | 0603-049 | CAP, SPINDLE | 1 | $0.68 | |
| 13 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 14 | 8013-232 | SCREW,CAP-HH 3/8-16 X 3.25 GR8 Z&Y | 1 | $1.95 | |
| 15 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 16 | 0605-202 | ROD END-RH | 1 | $84.95 | |
| 17 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 18 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 19 | 0703-252 | ARM,FRT.-LOWER-FAB-RH | 1 | $225.95 | |
| 19 | 0703-253 | ARM,FRT.-LOWER-FAB-LH | 1 | $268.95 | |
| 20 | 0603-517 | TUBE,AXLE-LOWER PIVOT | 1 | $41.95 | |
| 21 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 23 | 0703-208 | ARM,FRT-UPPER-FAB | 1 | $148.95 | |
| 24 | 0603-516 | TUBE,AXLE-UPPER ARM-PIVOT | 1 | $28.95 | |
| 25 | 0623-509 | SCREW,CAP-HH 3/8-16X9.455 GD 8 | 1 | $32.95 | |
| 26 | 1603-878 | SHOCK ABSORBER,FRONT SUSPENSION | 1 | $618.95 | |
| 27 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 29 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 31 | 0603-278 | PRING,COMPRESSION-FRONT SUSP | 1 | $122.95 | |
| 32 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 33 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 34 | 0105-236 | BALL JOINT,TIE ROD (FEMALE) | 1 | $41.95 | |
| 35 | 8040-546 | NUT,HEX LOCK-NYL 7/16-14 Z&Y | 1 | $0.45 | |
| 36 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 37 | 0603-558 | ARM,SWAYBAR-PTD BLK | 1 | $78.95 | |
| 38 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 39 | 0703-202 | SWAY BAR, 7/16-PAINTED | 1 | $108.95 | |
| 40 | 0603-151 | BEARING,SWAY BAR-SQUARE | 1 | $23.39 | |
| 41 | 8051-272 | WASHER,SPR LOCK-3/8 .377X.680X.094 Z&Y | 1 | $0.12 | |
| 42 | 0603-072 | TUBE, AXLE | 1 | $1.95 | |
| 43 | 0623-414 | SCREW,CAP HH 3/8-16 X 4.75 GR8 Z&Y | 1 | $4.68 | |
| 44 | 0603-523 | TUBE,AXLE-SPINDLE-LOWER ARM | 1 | $68.95 | |
| 45 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 46 | 0603-524 | AXLE,SERRATED-LOWER ARM PIVOT | 1 | $6.47 | |
| 47 | 8051-307 | WASHER,SPR LOCK-7/16 .440X.784X.133 Z&Y | 1 | $0.40 | |
| 48 | 0623-426 | NUT,NY-LOCK 3/8-16-NYL CAP BLACK | 1 | $1.64 |
